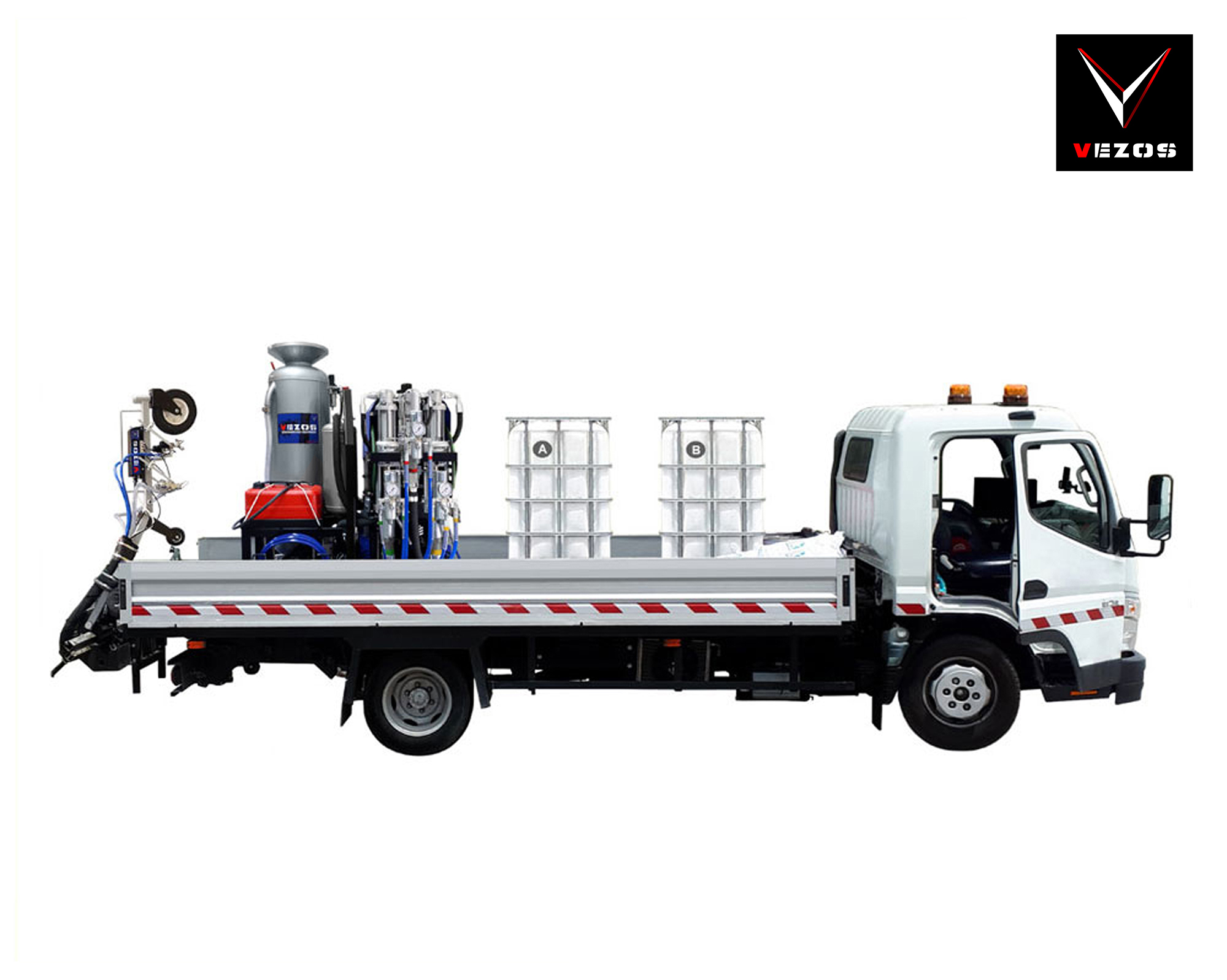

Line Striping Truck ROADMASTER 10 MAX (DC)
SKU: 77.2227624 (KIT) / Product Availability: Yes / Manufacturer: VEZOS
VEZOS ROADMASTER 10 MAX DC line striping truck is ideal for airport markings, city road marking, county and municipality line striping applications. Choose between VEZOS unique ROADMASTER striping modules, hydraulic carriages or retractable arm brackets, monitor and guidance systems and several innovative features. The entire line striping system folds up into the trucks bed for easy transportation, storage and on patch up jobs!
*Photos may contain features that are not included on the standard edition of the product.*
Back to: Truck Mounted Line Stripers
Get Price Online Catalog Video

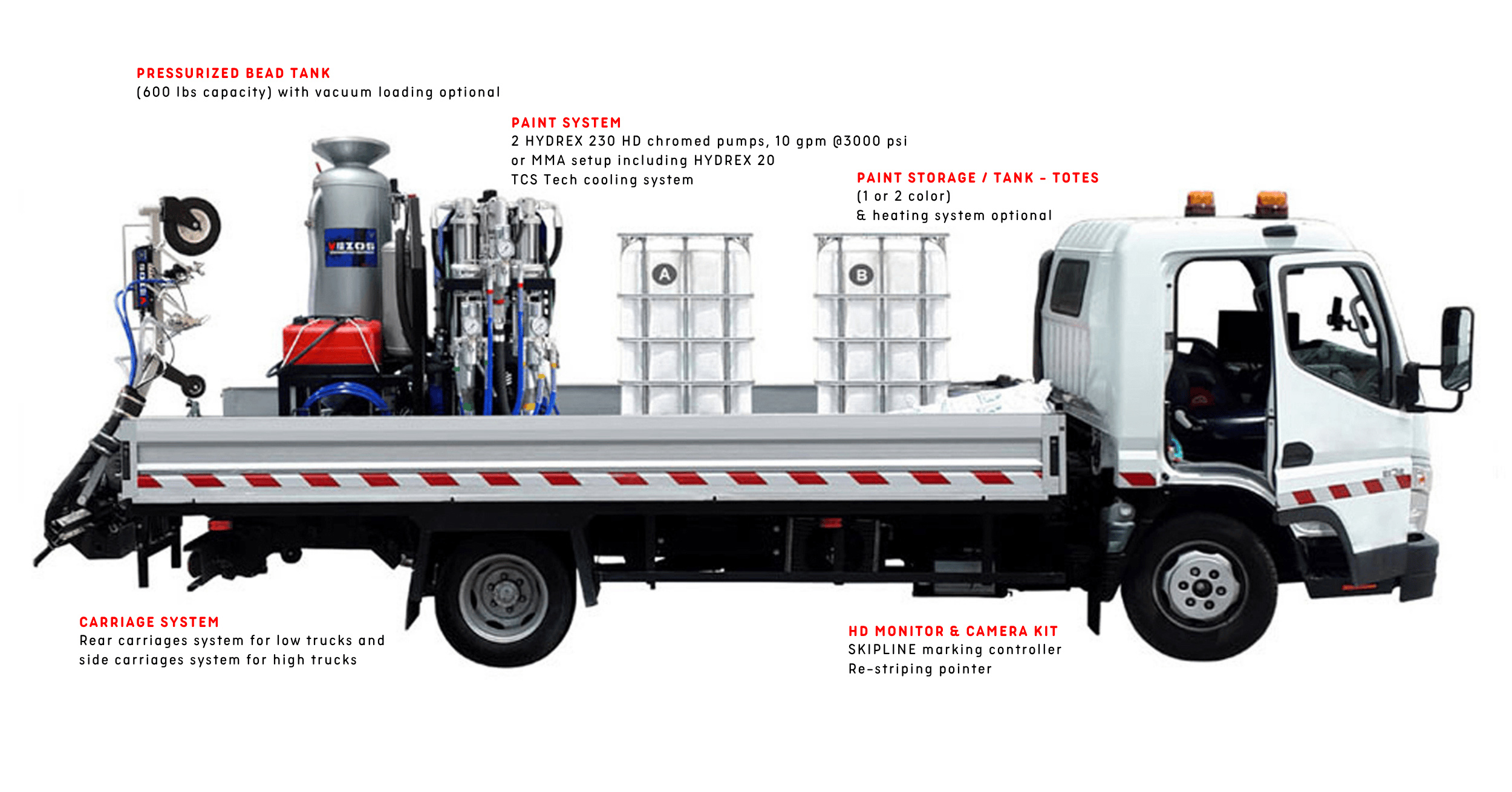

ROADMASTER 10 MAX DC LINE STRIPING TRUCK
STANDARD PALLETIZED SETUP
HYDRAULIC PAINT PRESSURE SYSTEM
ROADMASTER 10.0 MAX DC
- 2 HYDREX 340 hydraulic fully chromed piston paint pumps | 6.0 gpm (x2) @ 3000 psi
- HD large hydraulic oil cooler
- TCS system cooling technology
GLASS BEAD SYSTEM
- 1 steel pressure bead tank 600 kg - 1320 lbs capacity
- Glass bead tank loading steps
BRACKET
- Electro-pneumatic paint gun actuator
- 4 Automatic airless paint guns + 3 glass bead triggers
- Manual paint | stencil kit (15m hose, manual airless gun, reel)
GUIDANCE SYSTEM
- 1 Road marking controller SKIPLINE USA (5 channels)
not included in HYDREX 630 version
- 1 Re-striping pointer
ADDITIONAL OR REPLACEMENT OVER STANDARD PARTS
CARRIAGE setup
- 2 Hydraulic gun carriages assemblies with HD pneumatic tires & solenoid boxes
- 2 Air lifts
- 4 Paint gun actuators
Gun configuration:
- 3 Automatic airless paint guns + 3 glass bead triggers (left)
- 1 Automatic airless paint gun + 1 glass bead trigger (right)
- SST chromed HYDREX 630 PowerMax piston pump
- Additional HYDREX 630 PowerMax piston pump (2nd color)
- Additional HYDREX 340 PowerMax piston pump (3rd color)
- Paint & bead line for additional pump
- Canopy operation cab with single ride seat assembly
- Suspension type ride seat assembly
- SKIPLINE USA controller (5 channels)
- HD Monitor & Camera kit (1-2)
- 2nd Bead tank 300 kg - 660 lbs capacity
- Hydraulic paint agitators
- Dual gun carriage
- Paint SST tank 65 gallons x 2qty
- Gun actuators
- Gallon counters
- Strobe lighting kit
- Laser guidance system HD kit
- Intercom system 2 & 3 station
- Aluminum toolbox
- Fire extinguishers
- Air jets for gun carriage
- Additional gun & bead guns
- LED message board
| MODEL: FRAME B | ROADMASTER B10 | ROADMASTER B10 | ROADMASTER B10 |
| TRUCK-MOUNTED | TRUCK-MOUNTED | TRUCK-MOUNTED | |
| Material delivery (max) gpm | 12 | 12 | 12 |
| Material delivery (max) lpm | 45.5 | 45.5 | 45.5 |
| Working pressure (max) psi | 3000 | 3000 | 3000 |
| Working pressure (max) bar | 200 | 200 | 200 |
| Type | palletized | palletized | palletized |
| Pump | HYDREX 340 (x2) | HYDREX 340 (x2) | HYDREX 340 (x2) |
| Pump size | 20.7 cu.in. | 20.7 cu.in. | 20.7 cu.in. |
| Color - Pump | 2 color | 2 color | 2 color |
| Arm bracket | HD | HD | HD x 2qty |
| Gun setup (elecro-pneumatic) | 4 | 4 | 4 |
| System - Operation | Automatic | Automatic | Automatic |
| Dimensions (striper pallet) in | 49.2x49.2x63.8(h) | 49.2x49.2x63.8(h) | 49.2x49.2x63.8(h) |
| Dimensions (striper pallet) cm | 125x125x162(h) | 125x125x162(h) | 125x125x162(h) |
| Includes: | |||
| Paint gun | 4 | 4 | 4 |
| Guard | 4 | 4 | 4 |
| Tip | 4 | 4 | 4 |
| Glass bead gun | 4 | 4 | 4 |
| Manual stencil kit | included | included | included |
| Controller 5 channel | included | included | included |
| Pointer | included | included | included |
| Glass bead system pressurized 660 lbs | - | - | |
| Glass bead system pressurized 1320 lbs | included | included | included |
| Camera - Monitor kit | - | included | included |
| Part Number: | 77.2227623 | 77.2227624 | 77.2227628 |
| Optional Add-ons: | |||
| Glass bead system pressurized 1320 lbs | optional | - | - |
| Additional paint gun kit (up to 5 total) | 23.9942005 | 23.9942005 | 23.9942005 |
| Additional glass bead trigger kit (up to 5 total) | 23.9087419 | 23.9087419 | 23.9087419 |
