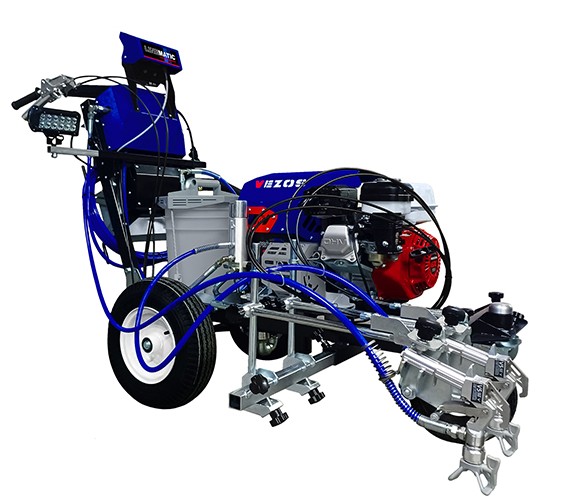

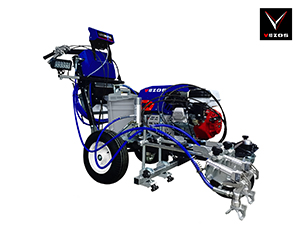

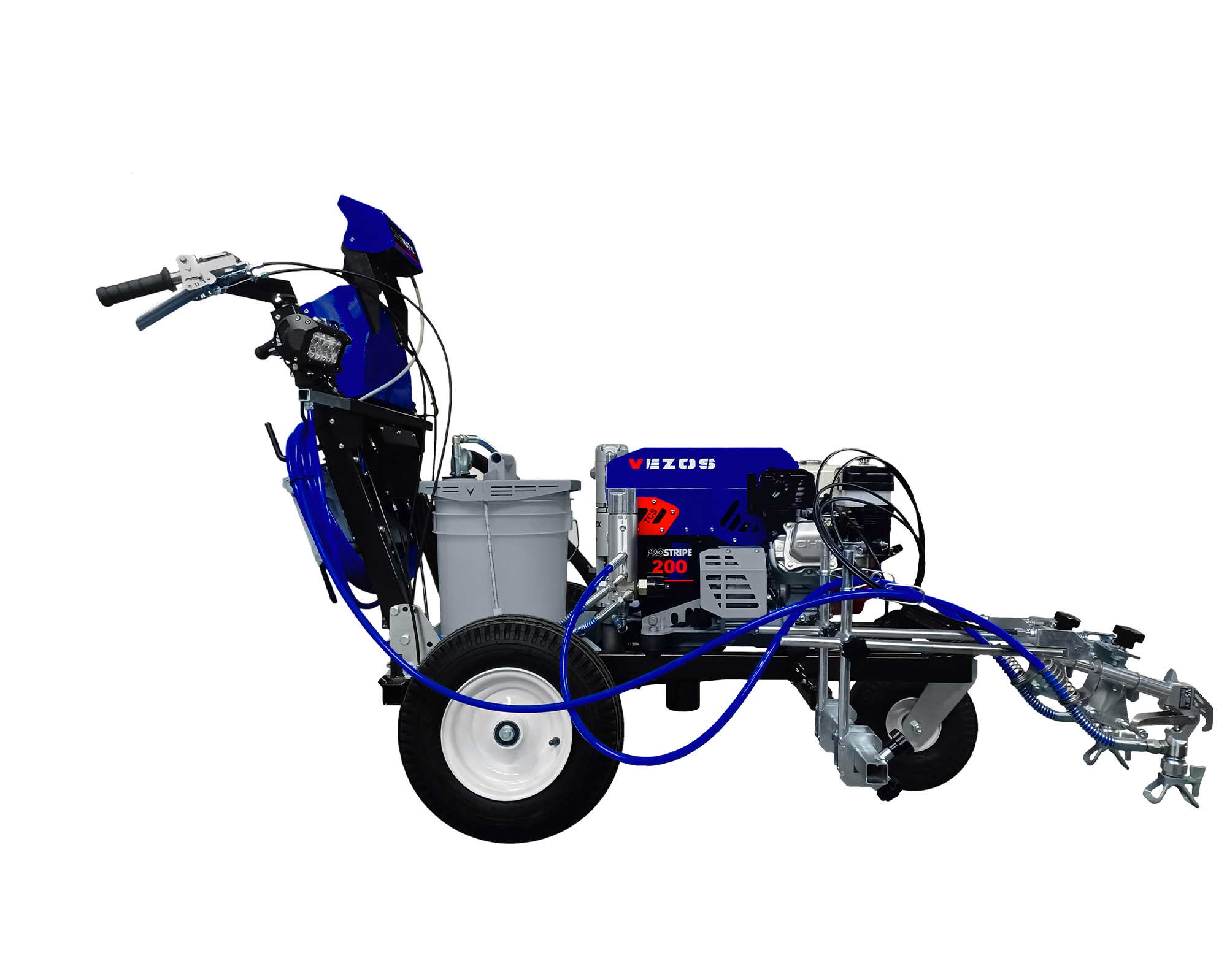

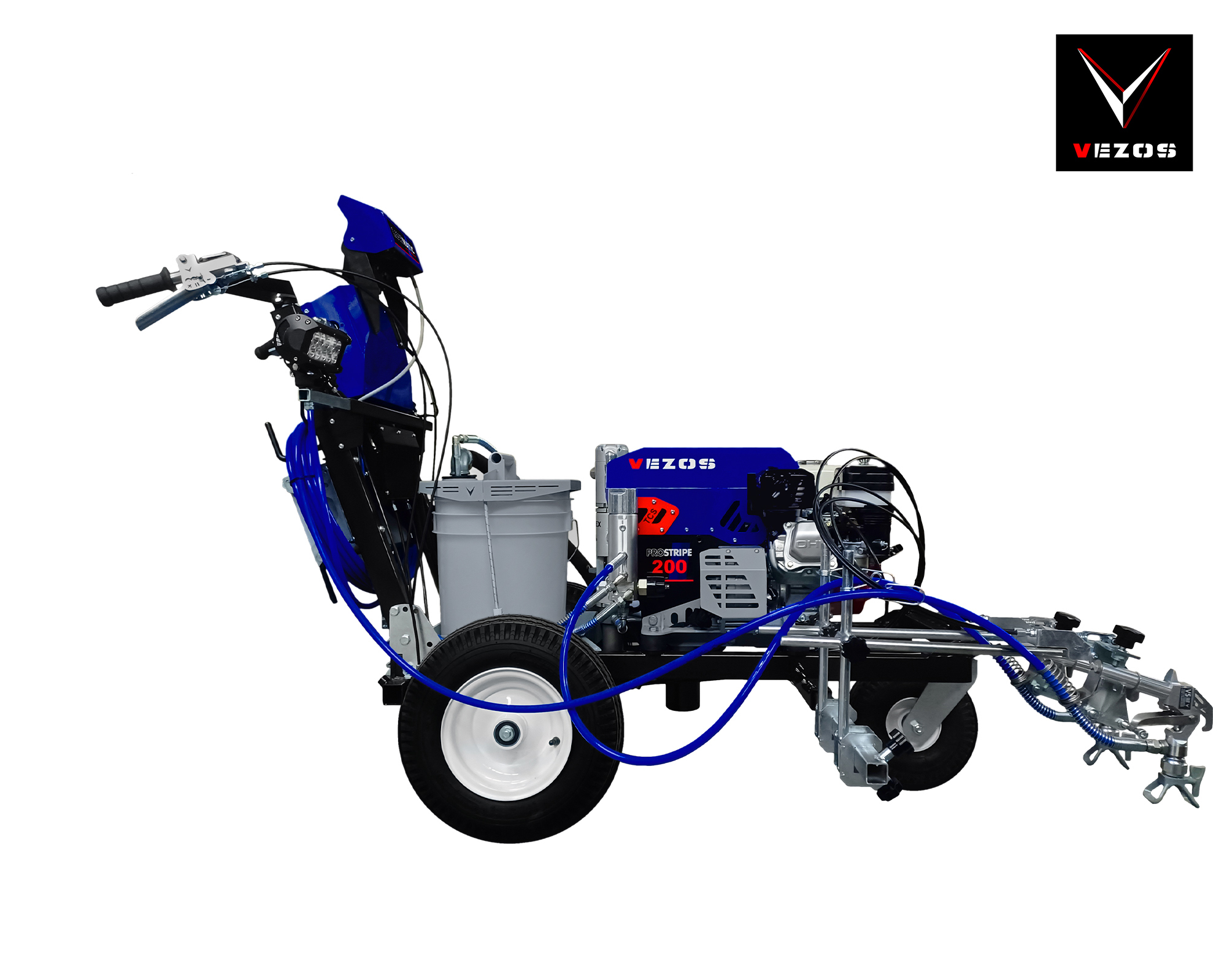

Walk Behind Line Striper PROSTRIPE 200 LINEMATIC - 2 Gun Automatic Paint Sprayer
SKU: 23.9017520 / Product Availability: Yes / Manufacturer: VEZOS
PROSTRIPE 200 LINEMATIC walk behind hydraulic line striper offer accurate material delivery and line precision for striping application such as parking lots, cross-ways, ports, athletic fields, city road maintenance and local striping jobs. Unlike other line stripers on the market, VEZOS PROSTRIPE 200 has been engineered with precision and stability in mind. Thanks to its perfectly balanced design, fully automatic operation and powerful HYDREX piston paint pumps, this game-changing line striper makes it easy to achieve sharp, clean lines that stand out in any space. With a retractable storage compartment under the steering bar, for easy and convenient storage of your essentials, making your workday more efficient and hassle-free. Ideal for medium size jobs, with a removable gun for stenciling or other touch up jobs.
*Photos may contain features that are not included on the standard edition of the product.*
Back to: Walk Behind Line Stripers
FEATURES
- Powerful VEZOS slow stroke hydraulic pump
- Removable gun for stenciling and touch-up jobs
- Fully automatic operation for effortless striping

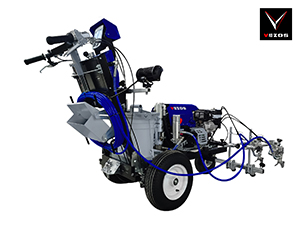

- Retractable storage compartment for convenient storage
- Advanced anti-vibration system for precise straight lines
- Enhanced electrical system with automotive type alternator
- Largest front swivel wheel in the industry for added stability
BENEFITS
- Increased versatility with removable gun
- Improved productivity with fully automatic operation
- Enhanced precision with advanced anti-vibration system
- Reduced downtime with retractable storage compartment
- Increased reliability with enhanced electrical system
- Improved maneuverability with largest front swivel wheel
Add VEZOS 68 lit - 18 gal paint hopper & VEZOS 32 kg - 70 lbs vibrated assisted bead hopper
VEZOS Enhanced Electrical System allows you to add multiple lights or laser kits to your line striper, all powered by the unit's own output!
No more external batteries and extra components, as our HD automotive type generator and
battery can support up to 180 watt loads. With VEZOS, you'll have everything you need right at your fingertips!
Designed to provide reliable and consistent power, even in the toughest conditions.
Whether you're working with a laser in bright sunlight or with a light kit in complete darkness,
our system will deliver the performance you need.

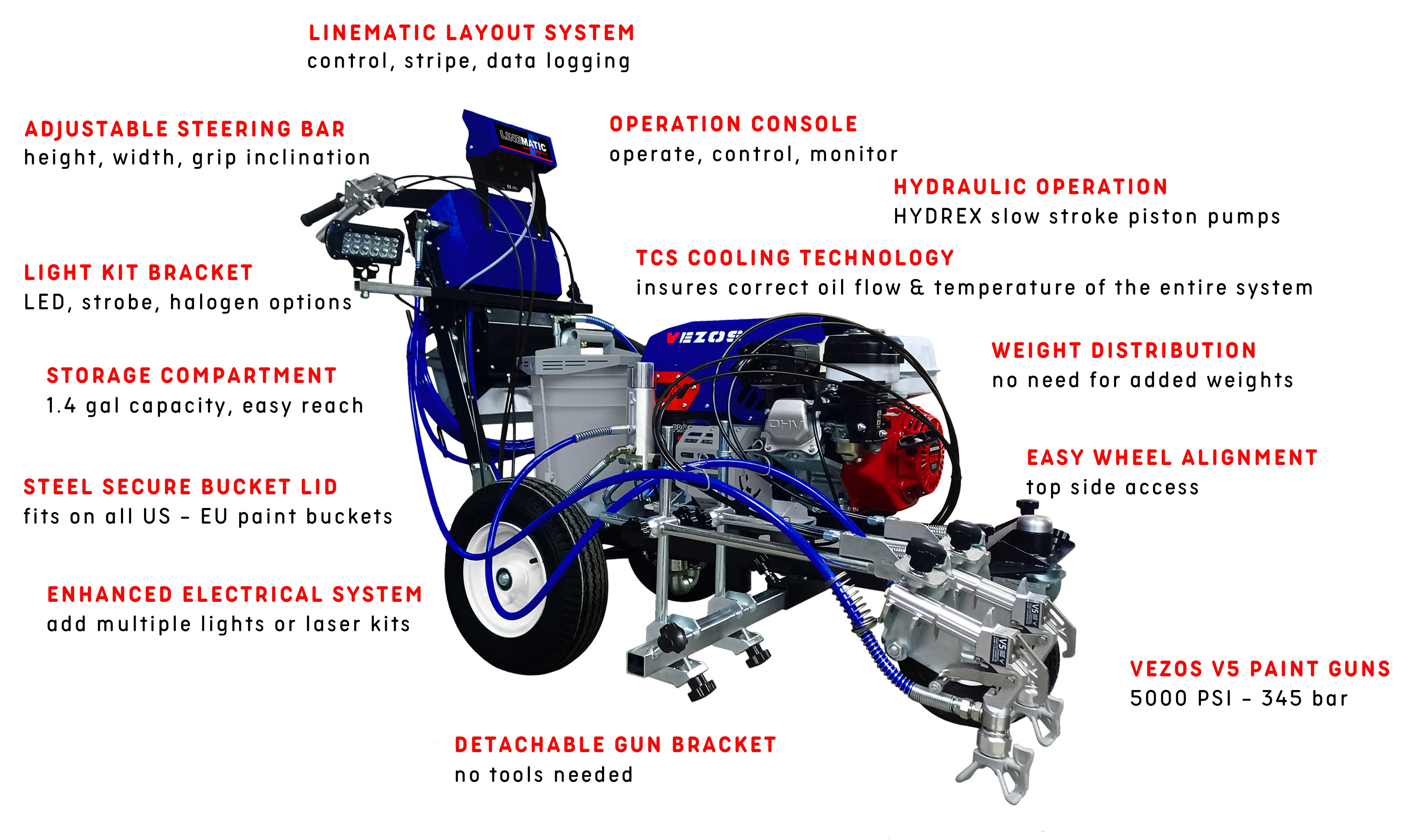

WIDE VIEW DESIGN
√ Low profile design for panoramic view of job site
HYDREX PISTON PUMP
√ Hydraulic piston pump HYDREX 50
√ Slow stroke 6.5 lit/min - 1.7 gal/min delivery
√ Built in filter
AUTOMATIC GUN OPERATION
√ Electric paint gun actuator
√ 1-2 manual paint gun set-up
√ Adjustable gun height
√ Front and rear gun placement
√ Removable gun for stenciling
LINEMATIC CONSOLE PS 200
√ Engine throttle
√ SKIP LINE controller
√ Engine & system ON/OFF
√ Pressure gauge
√ Hand brake
√ Cup holder
EXTRA FEATURES
√ Anti-vibration control
√ T.C.S cooling technology
√ 5 gallon plastic paint bucket
√ Steel secure bucket lid (fits on all US-EU paint buckets)
√ Hydraulic oil reservoir 2.5 gal & oil level indicator
√ Storage compartment (1.4 gal capacity, easy reach)
√ Enhanced electrical system (automotive type alternator)
√ Fully adjustable steering bar (height, width, grip inclination)
OPTIONAL ADD-ONS
√ Re-striping pointer
√ Paint hopper (18 gal)
√ Gravity glass bead system (70 lbs)
√ Light kit bracket (led, strobe, halogen etc.)
MODEL | PROSTRIPE 200 | PROSTRIPE 200 | PROSTRIPE 200 |
LINEMATIC | LINEMATIC | LINEMATIC + PRODRIVE | |
Material delivery (max) gpm | 1.7 | 1.7 | 1.7 |
Material delivery (max) lpm | 6.5 | 6.5 | 6.5 |
Working pressure (max) psi | 3350 | 3350 | 3350 |
Working pressure (max) bar | 230 | 230 | 230 |
Type | walk-behind | walk-behind | walk-behind |
Engine | 5.5 HP | 5.5 HP | 5.5 HP |
Engine Type | HONDA GX160 | HONDA GX160 | HONDA GX160 |
Pump | HYDREX 50 | HYDREX 50 | HYDREX 50 |
Color - Pump | 1 color | 1 color | 1 color |
Gun setup | 1 | 2 | 2 |
System - Operation | Automatic | Automatic | Automatic |
Dimensions (striper) in | 47x31.5x47 (h) | 47x31.5x47 (h) | 47x31.5x47 (h) |
Dimensions (striper) cm | 120x80x120 (h) | 120x80x120 (h) | 120x80x120 (h) |
INCLUDES: | |||
Paint gun | 1 | 2 | 2 |
Guard | 1 | 2 | 2 |
Tip | 1 | 2 | 2 |
Driver SP | - | - | included |
Controller | included | included | included |
Part Number | 23.9017519 | 23.9017520 | 23.9017520PD |
Optional Add-ons: | |||
Paint hopper 18 gal | 23.9214000 | 23.9214000 | 23.9214000 |
Glass bead system gravity 70 lbs | 23.9224300 | 23.9224322 | 23.9224322 |
Pointer | 23.7002204 | 23.7002204 | 23.7002204 |
