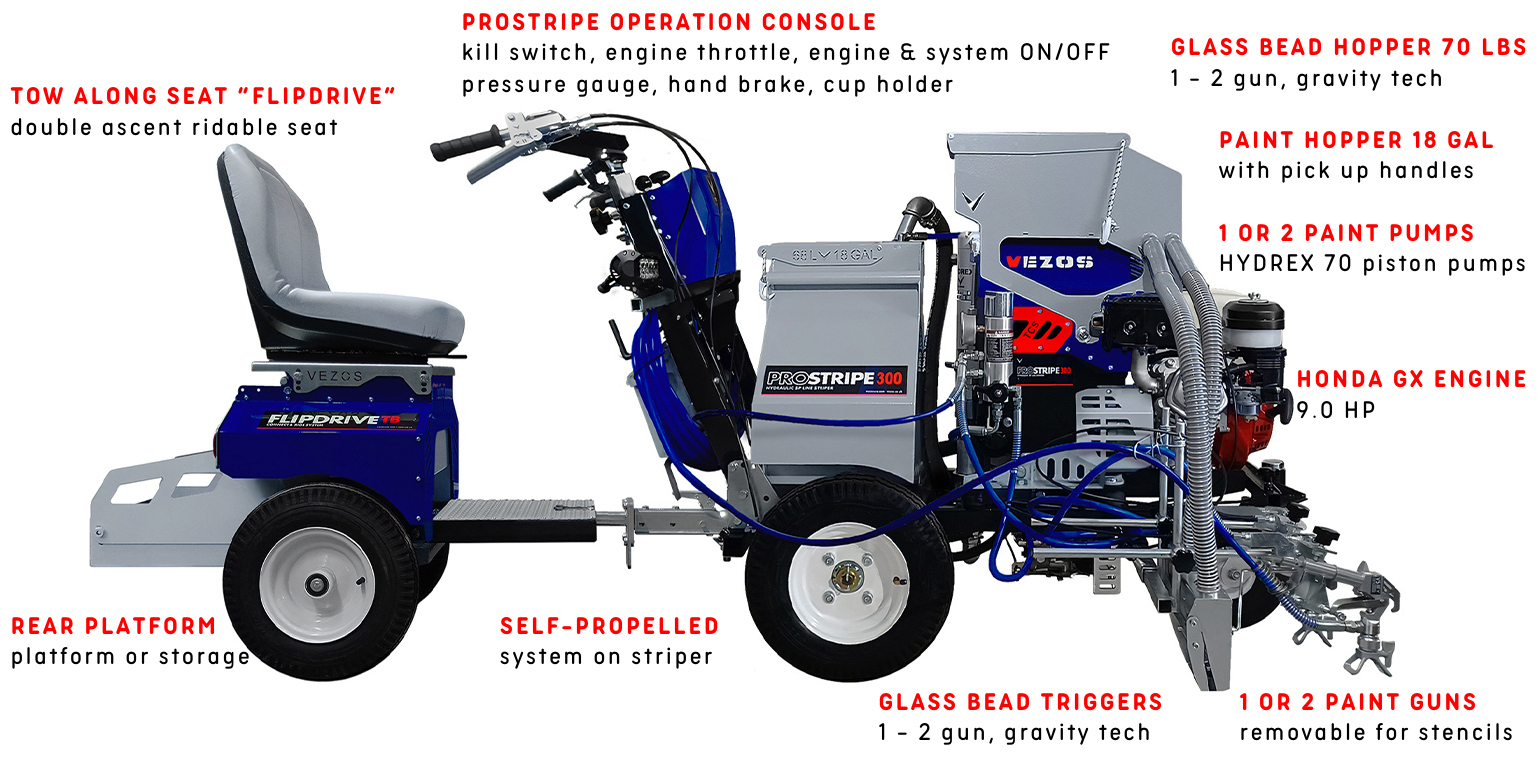

Line Striper PROSTRIPE 300 SP - 2 Paint Gun - Gravity Bead System - Paint Hopper - FLIPDRIVE

SKU: 23.9255038  /  Product Availability: Yes  /   Manufacturer: VEZOS

PROSTRIPE 300 SP hydraulic line striper is the ideal unit for medium to large contractors that take on city road and large parking lot striping applications. The self-propelled system is located directly on the striper instead of the ride along seat, allowing its users to stripe with a steady pace even when the line striper is fully loaded with material and wish to use the PS 300 SP as a walk-behind striping machine. Also, PROSTRIPE 300 SP self-propelled line striper is offered with an innovative drive along seat attachment FLIPDRIVE TB, the seat can also be used as a stand on platform for extra visibility of the road ahead. Proven best panoramic job site view in the market, even with the bead tank in place!


*Photos may contain features that are not included on the standard edition of the product.*


Back to: Self Propelled Line Stripers

Get Price Online Catalog Video



Self-Propelled Line Striper PROSTRIPE 300 - 68 lit Paint Hopper - 32 kg Gravity Glass Bead System with Tow-Behind Rider FLIPDRIVE

The PROSTRIPE 300 SP line striper offers line marking contractors a multi-task solution for the most demanding striping jobs. Equipped with a HYDREX slow stroke powerful hydraulic paint pump, HONDA GX engine and VEZOS well-known hydraulic technology, the PS 300 SP will never let you down.

Line Striper PROSTRIPE 300 SP - Gravity Bead System - Paint Hopper - FLIPDRIVE


vezos enhanced electrical system



VEZOS Enhanced Electrical System allows you to add multiple lights or laser kits to your line striper, all powered by the unit's own output!

No more external batteries and extra components, as our HD automotive type generator and
battery can support up to 180 watt loads. With VEZOS, you'll have everything you need right at your fingertips!

Designed to provide reliable and consistent power, even in the toughest conditions.
Whether you're working with a laser in bright sunlight or with a light kit in complete darkness,
our system will deliver the performance you need.




Includes:
- FLIPDRIVE TB ride along double ascent seat
- Gravity glass bead kit (2 gun)
- Paint hopper 68 lit - 18 gal
- Airless spray gun(s) x 2 qty



SELF-PROPELLED LINE STRIPER
SP system located directly on the striper
3-way drive / ride system
Motorcycle type motion control drive
Operation speed 16 km/h - 10 mph

WIDE VIEW DESIGN
Low profile design for panoramic view of job site
Road view ahead even in sitting position
Extreme visibility even with glass bead tank in place
No head or body tilting to stripe | Safety first

HYDREX PISTON PUMP
Hydraulic piston pump HYDREX 70
1 & 2 colour set up
Slow stroke 8.5 lit.min - 2.3 gal/min delivery
Built in filter

PAINT HOPPER 68 lit | 18 gal
Low profile paint tank for increased visibility
Single or double colour
Lift brackets & security hitches

GLASS BEAD HOPPER 32 kg | 70 lbs
Gravity tech bead system
Steel hopper with wide opening
Easy connection, no tools needed

MANUAL GUN OPERATION
Electric paint gun actuator
1-2 manual paint gun set-up
Adjustable gun height
Front and rear gun placement
Removable gun for stenciling

OPERATION CONSOLE PS 300
Kill switch | Engine throttle
Engine & system ON/OFF
Pressure gauge
Hand brake
Cup holder

FLIPDRIVE LINE STRIPE SEAT
Double ascent ride | sit – stand ride along
Tow behind attachment
Rear extra space for cones or gas tank
Hidden tool compartment with anti-slip surface

EXTRA FEATURES
Anti-vibration control
T.C.S cooling technology
Hydraulic oil reservoir 2.5 gal & oil level indicator
Storage compartment (1.4 gal capacity, easy reach)
Enhanced electrical system (automotive type alternator)
Fully adjustable steering bar (height, width, grip inclination)

OPTIONAL ADD-ONS
Re-striping pointer
LINEMATIC system (automatic operation)
Light kit bracket (led, strobe, halogen etc.)
Steel secure bucket lid (fits on all US-EU paint buckets)


MODEL PROSTRIPE 300  PROSTRIPE 300  PROSTRIPE 300
MANUAL + TB RIDER MANUAL + TB RIDER
MANUAL + TB RIDER
Material delivery (max) gpm 2.3 2.3 2.3
Material delivery (max) lpm 8.5 8.5 8.5
Working pressure (max) psi 3350 3350 3350
Working pressure (max) bar 230 230 230
Type  self-propelled self-propelled self-propelled
Engine HONDA 9.0 HP HONDA 9.0 HP HONDA 9.0 HP
Pump  HYDREX 70 HYDREX 70 HYDREX 70
Color - Pump 1 color   1 color   1 color
Gun setup 2 2 2
System - Operation Manual  Manual  Manual
Dimensions (striper) in 67x28x42 (h) 67x28x42 (h) 67x28x42 (h)
Dimensions (striper) cm 170x72x107(h)  170x72x107(h)  170x72x107(h)
Includes:
Paint gun  2 2 2
Guard  2 2 2
Tip  2 2 2
Glass bead gun - 2 2
Rider tow-behind included included included
Controller - - -
Paint hopper 18 gal included - included
Paint hopper 22 gal - - -
Glass bead system gravity 70 lbs - included included
Glass bead system pressurized 80 lbs - - -
Part Number 23.9255032 23.9255035 23.9255038
Optional Add-ons:
Paint hopper 18 gal - 23.9214000 -
Glass bead system gravity 70 lbs 23.9224300 - -
Pointer  23.7002204 23.7002204 23.7002204





Brochures


vezos-brochures Download: VEZOS Road Marking - Line Striping Catalog
