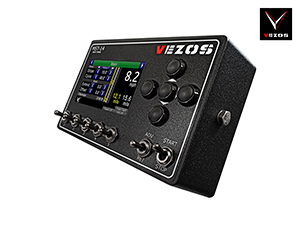

SKIPLINE MST-14 - 5 Channel Road Marking Controller (Skip Timer Operation Screen)
  • SKIPLINE MST-14 - 5 Channel Road Marking Controller (Skip Timer Operation Screen)

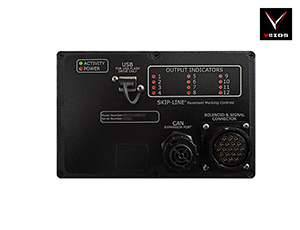

  • SKIPLINE MST-14 - 5 Channel Road Marking Controller
Back to: Line Striping Accessories

Road Marking Controller Skip Line MST-14

SKU: 77.5118101  /  Product Availability: Yes  /

road marking controller skipline mst 14


The MST-14 Skip Timer delivers a capable and intuitive road marking experience in a condensed package. Featuring a full-color display and easy-to-navigate menus, the MST-14 is perfect for road-marking vehicles. Simplify reporting requirements with integrated basic data logging of distance counters, material usage, average mil thickness, and time-stamped GPS start and stop coordinates. Export data as an Excel spreadsheet to a USB flash drive.

*Available on VEZOS ROADMASTER 5.0, ROADMASTER 10.0 & PROSTRIPE 400*


Back to: Line Striping Accessories

Get Price Online Catalog Video



VEZOS teams up with the industry’s leading road line controller developers, in order to offer its clients the top of the line monitors for long line road marking applications. Skip Line is a USA company, with 40 years of experience in the industry.



Road Marking Controller

Skip Line Controller MST-14

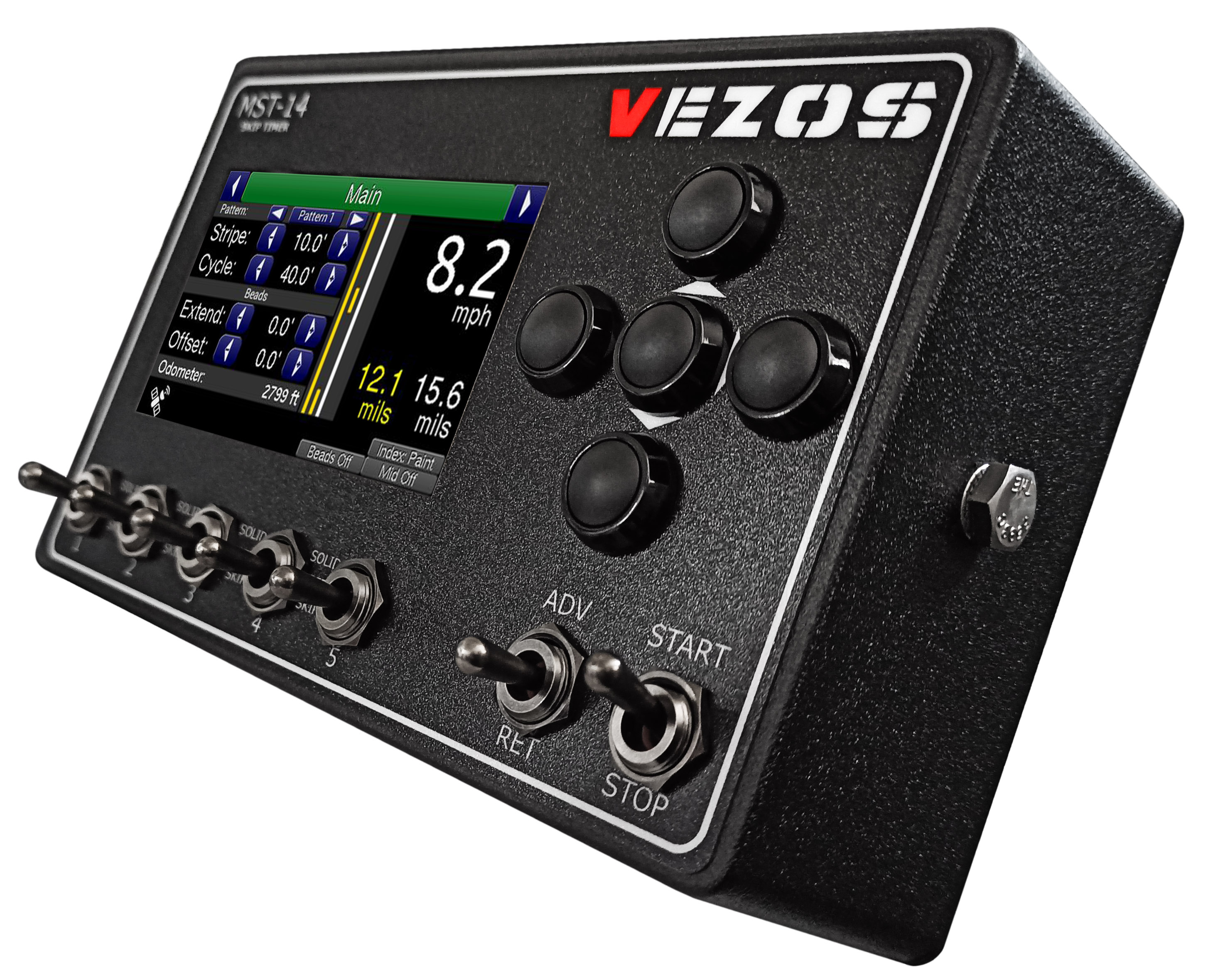

skipline mst-14 5 channel road marking controller



- Color Pattern Previewer

- Large Digit Speed Display

- Rugged Sealed Toggle Switches

- Instant and Average Application Rates

- 5 Paint & 5 Bead Auxiliary Gun Outputs

- Time & Distance Based Delays

- AutoCycle & Advance/Retard

- Datum Point (Delayed Start)

- Single Mid-dot



    - Counter Channels

    - Guided Calibration Procedures

    - Internal Motion Pulse Multiplier

    - Audible Warning System

    - Pattern Index on Paint or Gap

    - Lifetime Pump Totals

    - Switch Test Diagnostic Tool

    - Audio/visual Help Tutorials

    - Remote USB Software Update Capability


SKIPLINE CONTROLLER
   Monitor easily your day to day operations and take advantage
   of the controllers main screen during striping operations.

Road marking controllers VEZOS
   A quick setup menu, allows operators to enable or disable
   many features that may be used during day to day operations.

VEZOS road marking controllers

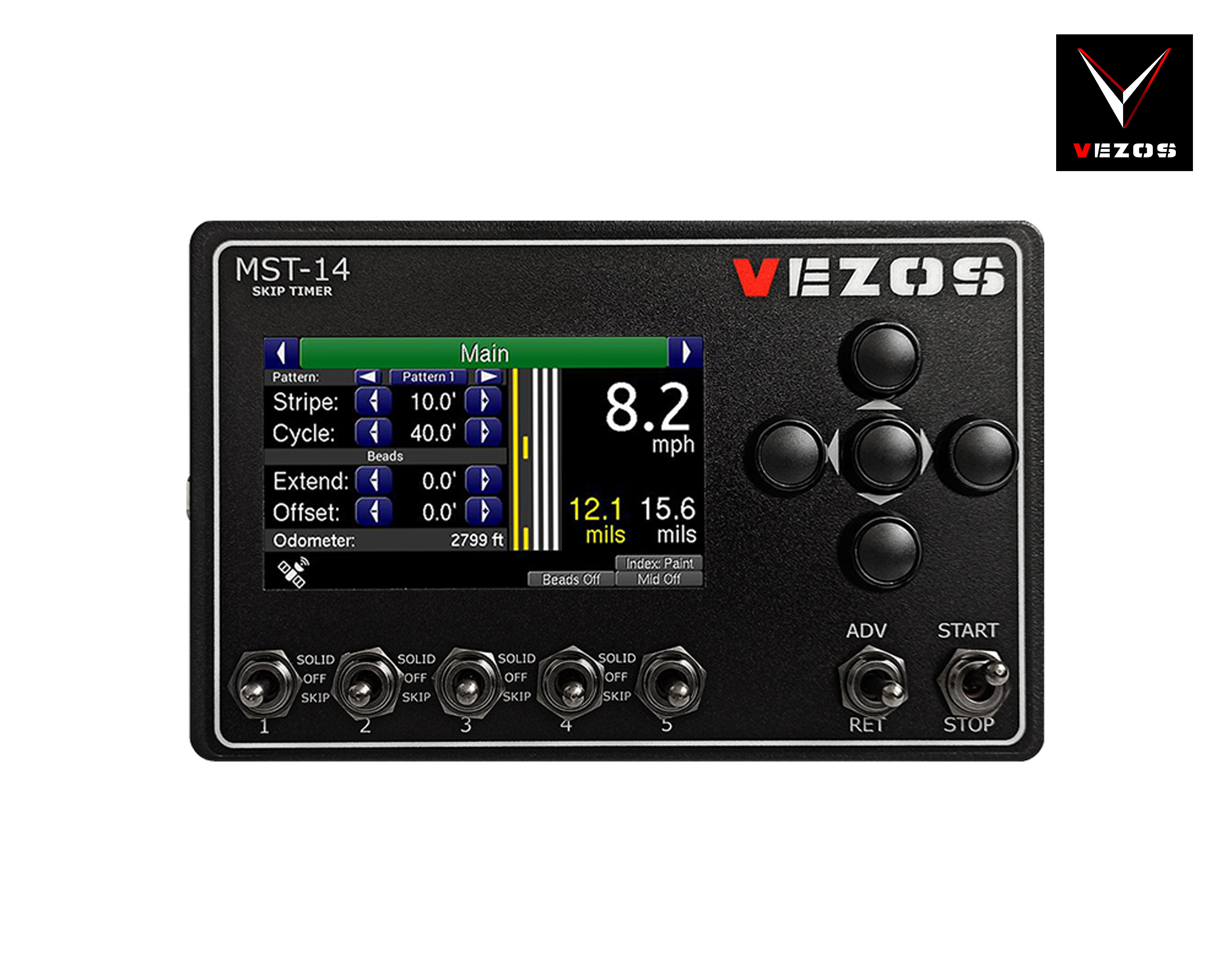

   Innovative skip-line pattern preview screen provides a preview of the current
   pattern that will be emitted from the guns.
   Gun colors are shown on the preview, helping the operator see clearly
   which guns will be counting towards application rates.

road marking skipline controller VEZOS
   Monitor your speed in large, high contrast digits for easy operating viewing.
   Average wet thickness calculations are shown below the speed.
