Self Propelled Line Striper PROSTRIPE 300 SP - 2 Paint Gun - Paint Hopper 68L

SKU: 23.9255031  /  Product Availability: Yes  /   Manufacturer: VEZOS

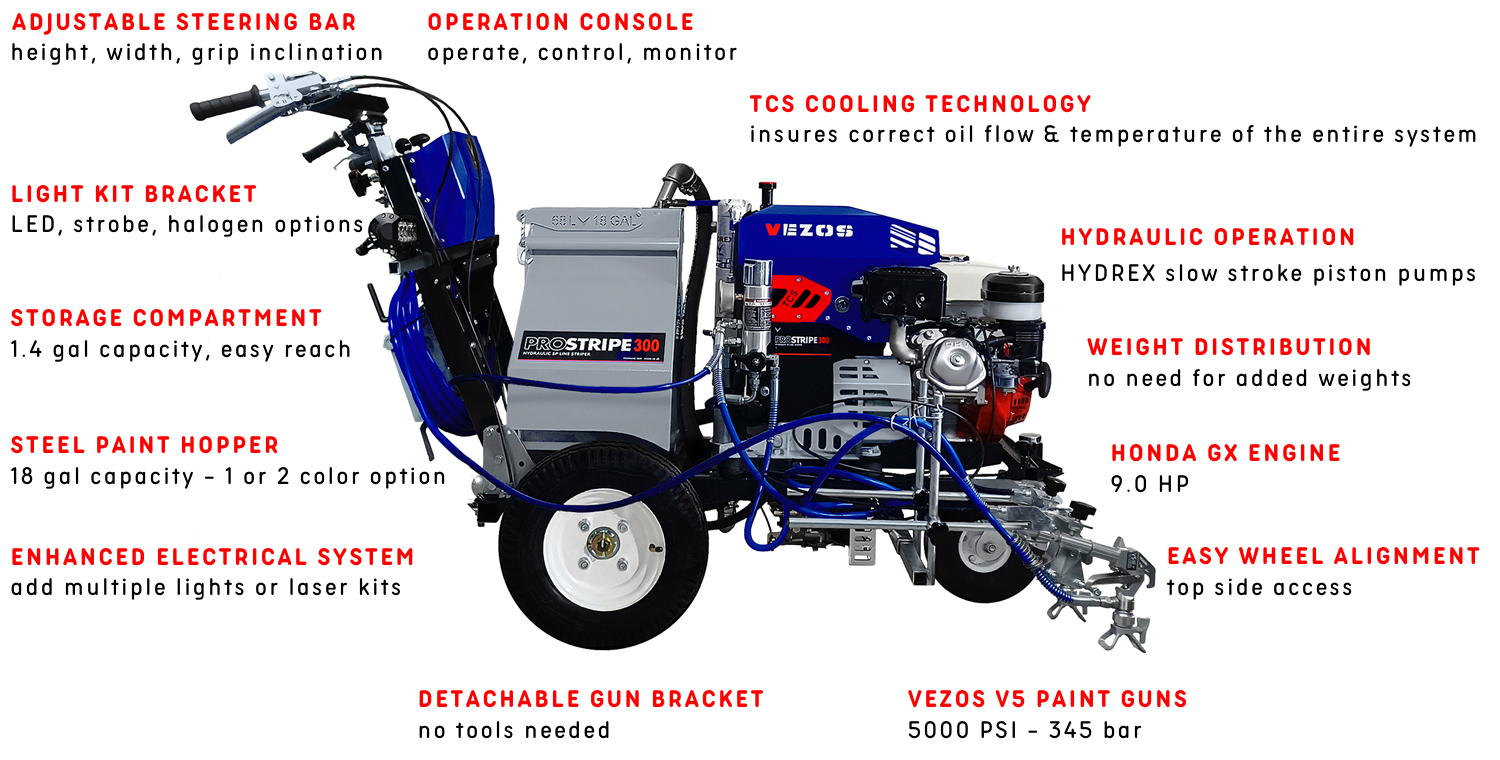

PROSTRIPE 300 SP - a hydraulic-operated, self-propelled line striper that excels in versatility, allowing perfect transition to a walk-behind unit for enhanced maneuverability. Ideal for a variety of striping applications, including large parking lots, city roads, schools, and various other surfaces. Equipped with a paint hopper boasting a generous 18 gallon paint capacity, ensuring non-stop striping operations, significantly reducing refill time and expenses. Powered by a robust HONDA GX 9hp engine and a HYDREX 70 slow stroke piston paint pump, this innovative line striper delivers unparalleled performance and efficiency in the industry.


*Photos may contain features that are not included on the standard edition of the product.*


Back to: Self Propelled Line Stripers

Get Price Online Catalog Video



Hydraulic Self-Propelled Line Striper PROSTRIPE 300 - 68 lit Paint Hopper

The PS 300 SP Line Striper is designed to streamline your parking lot striping process with its innovative features. The Double Lock Trigger located on the Adjustable Steering Bar allows for effortless and instant engagement of the front swivel wheel, ensuring precise control and smooth operation. The unit's Motorcycle-Type Motion Control enables efficient line striping, while the FLIPDRIVE Line Striper Rider at the rear end of the unit is perfect for tackling large parking lot striping projects or long line marking applications.

vezos self propelled line striper PROSTRIPE 300 SP Hydraulic - 2 paint guns - paint hopper


vezos enhanced electrical system



VEZOS Enhanced Electrical System allows you to add multiple lights or laser kits to your line striper, all powered by the unit's own output!

No more external batteries and extra components, as our HD automotive type generator and
battery can support up to 180 watt loads. With VEZOS, you'll have everything you need right at your fingertips!

Designed to provide reliable and consistent power, even in the toughest conditions.
Whether you're working with a laser in bright sunlight or with a light kit in complete darkness,
our system will deliver the performance you need.




SELF-PROPELLED LINE STRIPER
SP system located directly on the striper
3-way drive / ride system
Motorcycle type motion control drive
Operation speed 16 km/h - 10 mph

WIDE VIEW DESIGN
Low profile design for panoramic view of job site
Road view ahead even in sitting position
Extreme visibility even with glass bead tank in place
No head or body tilting to stripe | Safety first

HYDREX PISTON PUMP
Hydraulic piston pump HYDREX 70
1 & 2 colour set up
Slow stroke 8.5 lit/min - 2.3 gal/min delivery
Built in filter

PAINT HOPPER 68 lit | 18 gal
Low profile paint tank for increased visibility
Single or double colour
Lift brackets & security hitches

GLASS BEAD HOPPER 32 kg | 70 lbs (optional)
Gravity tech bead system
Steel hopper with wide opening
Easy connection, no tools needed

MANUAL GUN OPERATION
Electric paint gun actuator
1-2 manual paint gun set-up
Adjustable gun height
Front and rear gun placement
Removable gun for stenciling

OPERATION CONSOLE PS 300
Kill switch | Engine throttle
Engine & system ON/OFF
Pressure gauge
Hand brake
Cup holder

FLIPDRIVE LINE STRIPE SEAT (optional)
Double ascent ride | sit – stand ride along
Tow behind attachment
Rear extra space for cones or gas tank
Hidden tool compartment with anti-slip surface

EXTRA FEATURES
Anti-vibration control
T.C.S cooling technology
Hydraulic oil reservoir 2.5 gal & oil level indicator
Storage compartment (1.4 gal capacity, easy reach)
Enhanced electrical system (automotive type alternator)
Fully adjustable steering bar (height, width, grip inclination)

OPTIONAL ADD-ONS
Re-striping pointer
Gravity glass bead system (70 lbs)
LINEMATIC system (automatic operation)
Light kit bracket (led, strobe, halogen etc.)
Steel secure bucket lid (fits on all US-EU paint buckets)


MODEL PROSTRIPE 300  PROSTRIPE 300  PROSTRIPE 300
MANUAL  MANUAL  MANUAL + TB RIDER
Material delivery (max) gpm 2.3 2.3 2.3
Material delivery (max) lpm 8.5 8.5 8.5
Working pressure (max) psi 3350 3350 3350
Working pressure (max) bar 230 230 230
Type  self-propelled self-propelled self-propelled
Engine 9.0 HP 9.0 HP 9.0 HP
Engine Type HONDA GX270 HONDA GX270 HONDA GX270
Pump  HYDREX 70 HYDREX 70 HYDREX 70
Color - Pump 1 color   1 color   1 color
Gun setup 1 2 2
System - Operation Manual  Manual  Manual
Dimensions (striper) in 67x28x42(h) 67x28x42(h) 67x28x42(h)
Dimensions (striper) cm 170x72x107(h)  170x72x107(h)  170x72x107(h)
Includes:
Paint gun  1 2 2
Guard  1 2 2
Tip  1 2 2
Glass bead gun - - -
Rider tow-behind - - included
Controller - - -
Paint hopper 18 gal included included included
Paint hopper 22 gal - - -
Glass bead system gravity 70 lbs - - -
Glass bead system pressurized 80 lbs - - -
Part Number 23.9255030 23.9255031 23.9255032
Optional Add-ons:
Paint hopper 18 gal - - -
Glass bead system gravity 70 lbs 23.9224300 23.9224322 23.9224322
Pointer  23.7002204 23.7002204 23.7002204
Rider tow-behind 23.9115501 23.9115501 -
