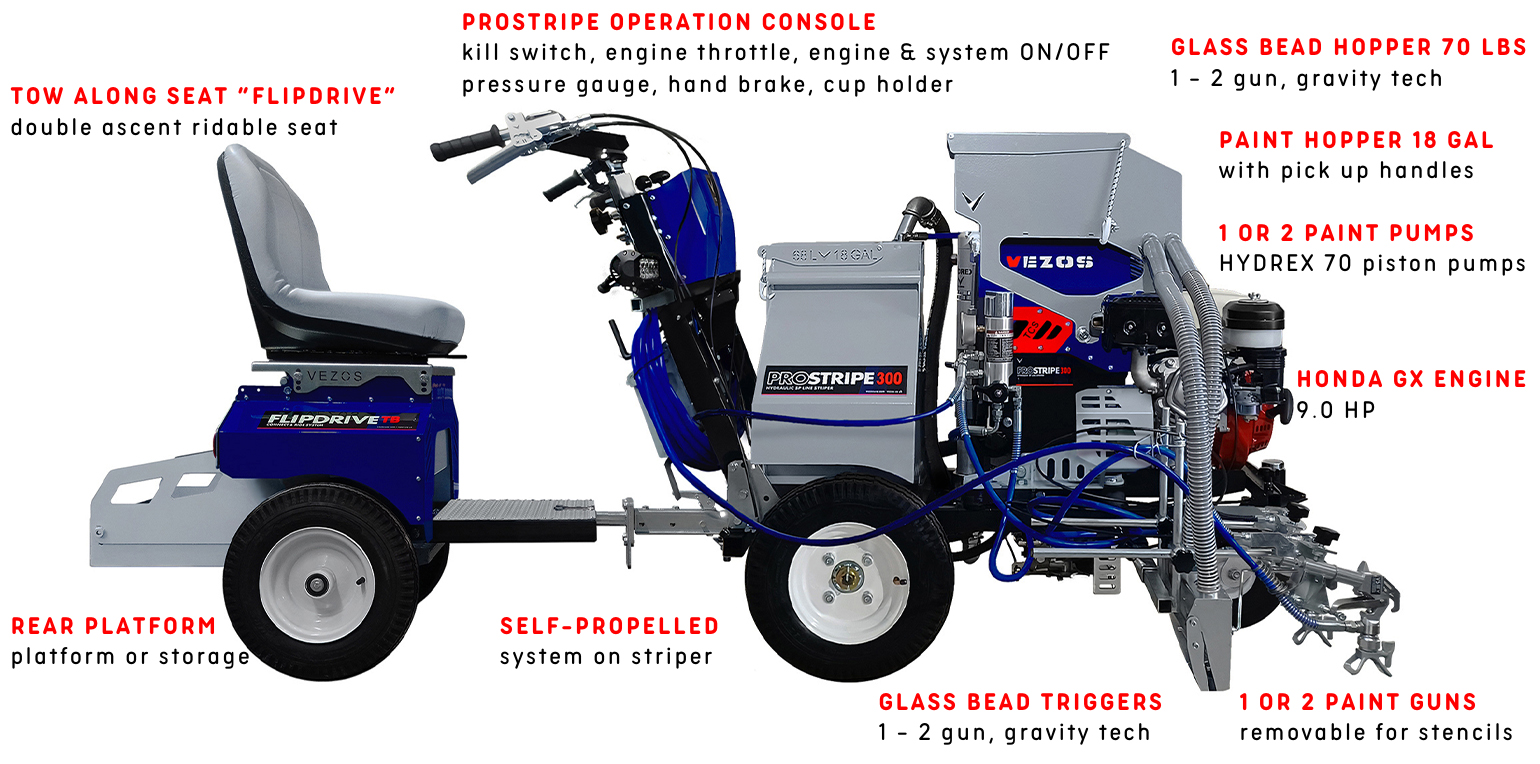

Line Striper PROSTRIPE 300 SP - 2 Paint Gun - Gravity Bead System - Paint Hopper - FLIPDRIVE
SKU: 23.9255038 / Product Availability: Yes / Manufacturer: VEZOS
PROSTRIPE 300 SP hydraulic line striper is the ideal unit for medium to large contractors that take on city road and large parking lot striping applications. The self-propelled system is located directly on the striper instead of the ride along seat, allowing its users to stripe with a steady pace even when the line striper is fully loaded with material and wish to use the PS 300 SP as a walk-behind striping machine. Also, PROSTRIPE 300 SP self-propelled line striper is offered with an innovative drive along seat attachment FLIPDRIVE TB, the seat can also be used as a stand on platform for extra visibility of the road ahead. Proven best panoramic job site view in the market, even with the bead tank in place!
*Photos may contain features that are not included on the standard edition of the product.*
Back to: Self Propelled Line Stripers
Get Price Online Catalog Video
Self-Propelled Line Striper PROSTRIPE 300 - 68 lit Paint Hopper - 32 kg Gravity Glass Bead System with Tow-Behind Rider FLIPDRIVE
The PROSTRIPE 300 SP line striper offers line marking contractors a multi-task solution for the most demanding striping jobs. Equipped with a HYDREX slow stroke powerful hydraulic paint pump, HONDA GX engine and VEZOS well-known hydraulic technology, the PS 300 SP will never let you down.
VEZOS Enhanced Electrical System allows you to add multiple lights or laser kits to your line striper, all powered by the unit's own output!
No more external batteries and extra components, as our HD automotive type generator and
battery can support up to 180 watt loads. With VEZOS, you'll have everything you need right at your fingertips!
Designed to provide reliable and consistent power, even in the toughest conditions.
Whether you're working with a laser in bright sunlight or with a light kit in complete darkness,
our system will deliver the performance you need.
Includes:
- FLIPDRIVE TB ride along double ascent seat
- Gravity glass bead kit (2 gun)
- Paint hopper 68 lit - 18 gal
- Airless spray gun(s) x 2 qty
SELF-PROPELLED LINE STRIPER
√ SP system located directly on the striper
√ 3-way drive / ride system
√ Motorcycle type motion control drive
√ Operation speed 16 km/h - 10 mph
WIDE VIEW DESIGN
√ Low profile design for panoramic view of job site
√ Road view ahead even in sitting position
√ Extreme visibility even with glass bead tank in place
√ No head or body tilting to stripe | Safety first
HYDREX PISTON PUMP
√ Hydraulic piston pump HYDREX 70
√ 1 & 2 colour set up
√ Slow stroke 8.5 lit.min - 2.3 gal/min delivery
√ Built in filter
PAINT HOPPER 68 lit | 18 gal
√ Low profile paint tank for increased visibility
√ Single or double colour
√ Lift brackets & security hitches
GLASS BEAD HOPPER 32 kg | 70 lbs
√ Gravity tech bead system
√ Steel hopper with wide opening
√ Easy connection, no tools needed
MANUAL GUN OPERATION
√ Electric paint gun actuator
√ 1-2 manual paint gun set-up
√ Adjustable gun height
√ Front and rear gun placement
√ Removable gun for stenciling
OPERATION CONSOLE PS 300
√ Kill switch | Engine throttle
√ Engine & system ON/OFF
√ Pressure gauge
√ Hand brake
√ Cup holder
FLIPDRIVE LINE STRIPE SEAT
√ Double ascent ride | sit – stand ride along
√ Tow behind attachment
√ Rear extra space for cones or gas tank
√ Hidden tool compartment with anti-slip surface
EXTRA FEATURES
√ Anti-vibration control
√ T.C.S cooling technology
√ Hydraulic oil reservoir 2.5 gal & oil level indicator
√ Storage compartment (1.4 gal capacity, easy reach)
√ Enhanced electrical system (automotive type alternator)
√ Fully adjustable steering bar (height, width, grip inclination)
OPTIONAL ADD-ONS
√ Re-striping pointer
√ LINEMATIC system (automatic operation)
√ Light kit bracket (led, strobe, halogen etc.)
√ Steel secure bucket lid (fits on all US-EU paint buckets)
| MODEL | PROSTRIPE 300 | PROSTRIPE 300 | PROSTRIPE 300 |
| MANUAL + TB RIDER | MANUAL + TB RIDER |
MANUAL + TB RIDER |
|
| Material delivery (max) gpm | 2.3 | 2.3 | 2.3 |
| Material delivery (max) lpm | 8.5 | 8.5 | 8.5 |
| Working pressure (max) psi | 3350 | 3350 | 3350 |
| Working pressure (max) bar | 230 | 230 | 230 |
| Type | self-propelled | self-propelled | self-propelled |
| Engine | HONDA 9.0 HP | HONDA 9.0 HP | HONDA 9.0 HP |
| Pump | HYDREX 70 | HYDREX 70 | HYDREX 70 |
| Color - Pump | 1 color | 1 color | 1 color |
| Gun setup | 2 | 2 | 2 |
| System - Operation | Manual | Manual | Manual |
| Dimensions (striper) in | 67x28x42 (h) | 67x28x42 (h) | 67x28x42 (h) |
| Dimensions (striper) cm | 170x72x107(h) | 170x72x107(h) | 170x72x107(h) |
| Includes: | |||
| Paint gun | 2 | 2 | 2 |
| Guard | 2 | 2 | 2 |
| Tip | 2 | 2 | 2 |
| Glass bead gun | - | 2 | 2 |
| Rider tow-behind | included | included | included |
| Controller | - | - | - |
| Paint hopper 18 gal | included | - | included |
| Paint hopper 22 gal | - | - | - |
| Glass bead system gravity 70 lbs | - | included | included |
| Glass bead system pressurized 80 lbs | - | - | - |
| Part Number | 23.9255032 | 23.9255035 | 23.9255038 |
| Optional Add-ons: | |||
| Paint hopper 18 gal | - | 23.9214000 | - |
| Glass bead system gravity 70 lbs | 23.9224300 | - | - |
| Pointer | 23.7002204 | 23.7002204 | 23.7002204 |
