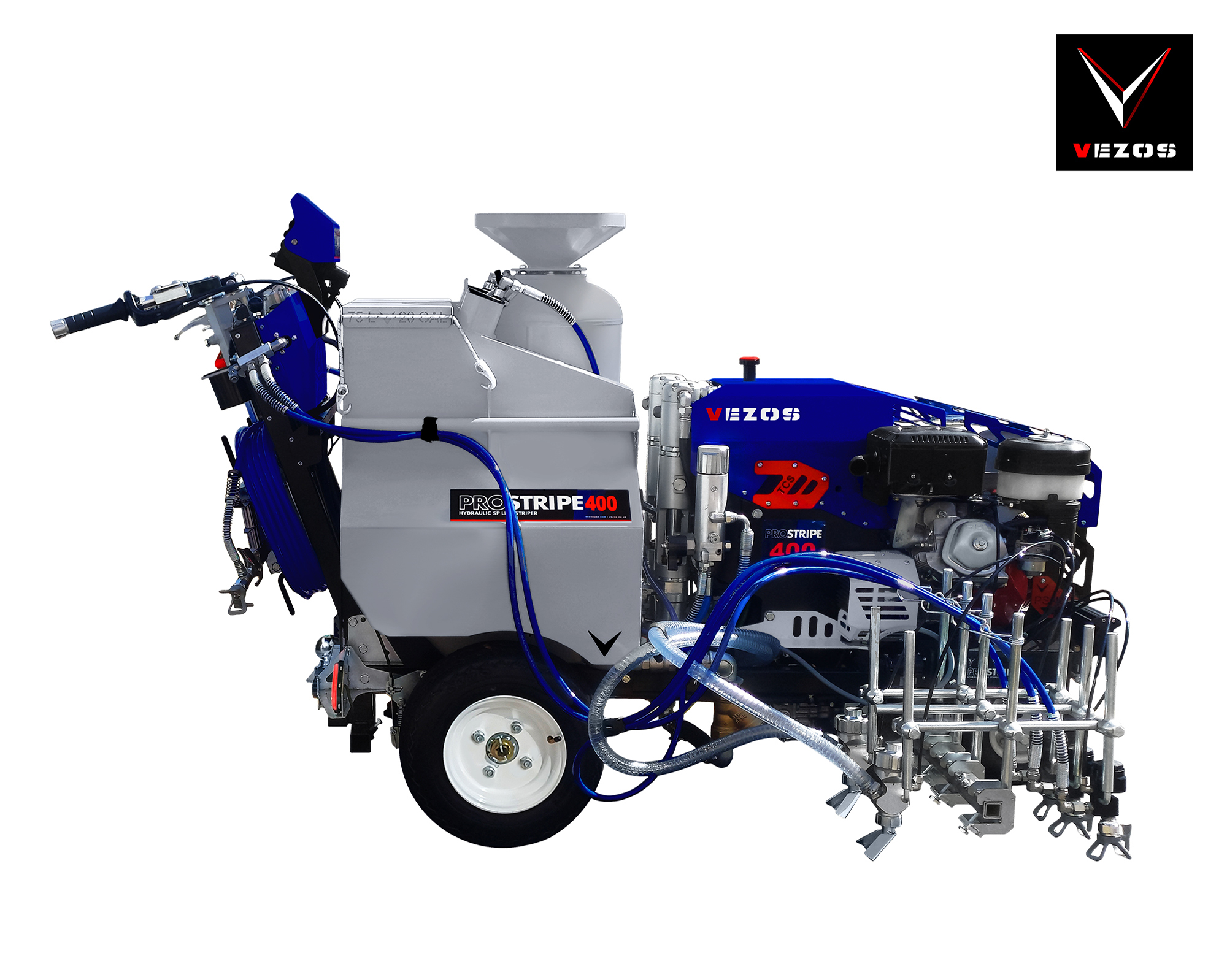

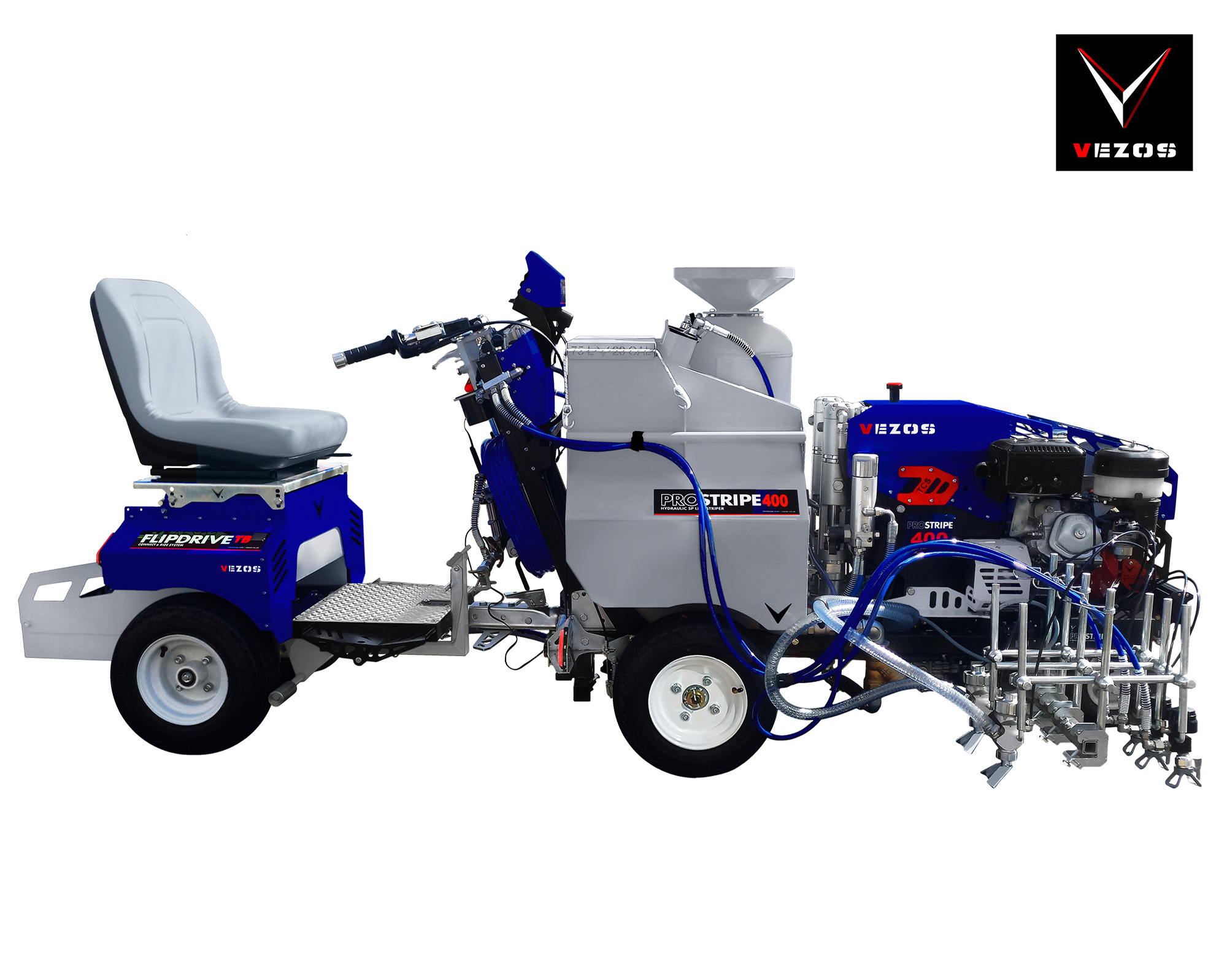

Self Propelled Line Striper PROSTRIPE 400 SP LINEMATIC DC - Selective Steering - 2 Paint Gun
SKU: 23.9941006 / Product Availability: Yes / Manufacturer: VEZOS
PROSTRIPE 400 LINEMATIC DC - an advanced, fully automatic, self-propelled line striping machine designed for unparalleled precision and efficiency. With its innovative dual selective steering option, this cutting-edge striper excels at tackling challenging tasks such as intersections, long straight lines, and wide curves that traditional stripers struggle with. Effortlessly switch between free caster front wheel operation and a meticulously controlled steering drive method, complete with a radius indicator system, dual color HYDREX pumps for simultaneous dual color striping, and a generous 150-liter / 40-gallon paint tank with dual suction hose inlets for increased productivity. The PROSTRIPE 400 DC is the perfect choice for roundabouts, local city jobs, DOTs and intersections, ensuring professional results every time.
*Photos may contain features that are not included on the standard edition of the product.*
Back to: Self Propelled Line Stripers
Get Price Online Catalog Video
SELF-PROPELLED LINE STRIPER
√ SP system located directly on the striper
√ 3-way drive / ride system
√ Motorcycle type motion control drive
√ Operation speed 16 km/h - 10 mph
SELECTIVE FRONT WHEEL STEERING (SWS)
√ 4-ply durable tire
√ Center lock-in front wheel in both positions
√ Position A: Precise steering from handle bar with automotive type steel bar
√ Position B: Free front caster wheel for increased maneuverability
WIDE VIEW DESIGN
√ Low profile design for panoramic view of job site
√ Road view ahead even in sitting position
√ Extreme visibility even with glass bead tank in place
√ No head or body tilting to stripe | Safety first
HYDREX PISTON PUMP
√ Hydraulic piston pump HYDREX 70
√ 1 & 2 color set up
√ Slow stroke 9.5 lit/min - 2.5 gal/min delivery
√ Built in filter
PAINT HOPPER 150 lit | 40 gal
√ Low profile paint tank for increased visibility
√ Inclined slope bottom
√ Single or double color with separate pump inlets
2 color 75 lit x 2 division | 20 gal x 2 division
√ Lift brackets & security hitches
√ Clean-out trap (connected directly to the pump suction)
GLASS BEAD TANK 75 kg | 165 lbs
√ Pressurized bead system
√ Steel tank with pop up valve for increased safety
√ Removable loading funnel (no tools required)
AUTOMATIC GUN OPERATION
√ Electro-pneumatic paint gun actuator
√ 2-4 automatic paint & glass gun set-up
√ Adjustable gun height

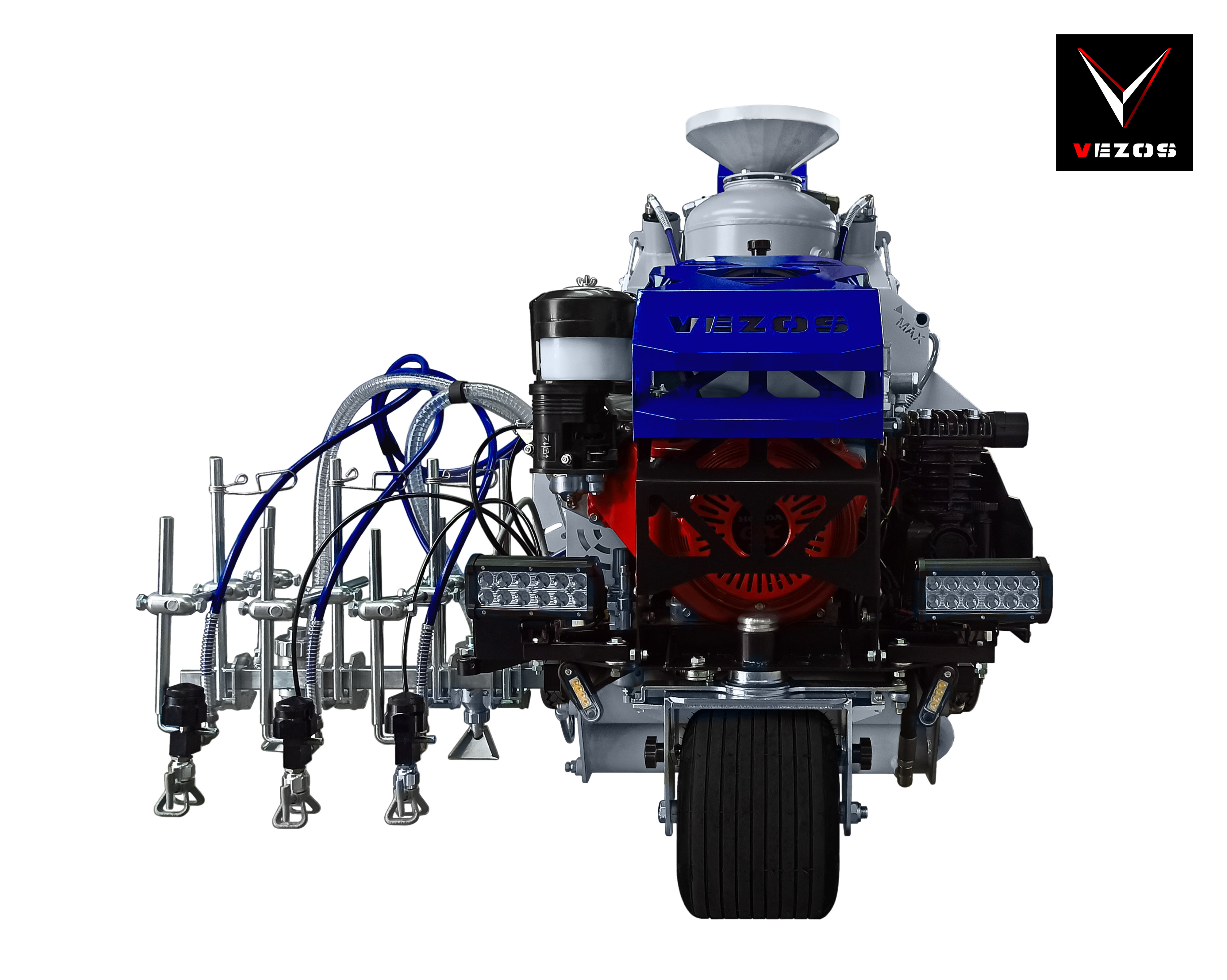

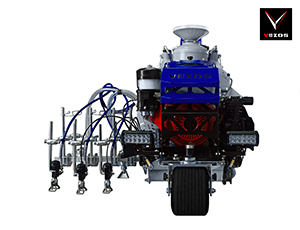

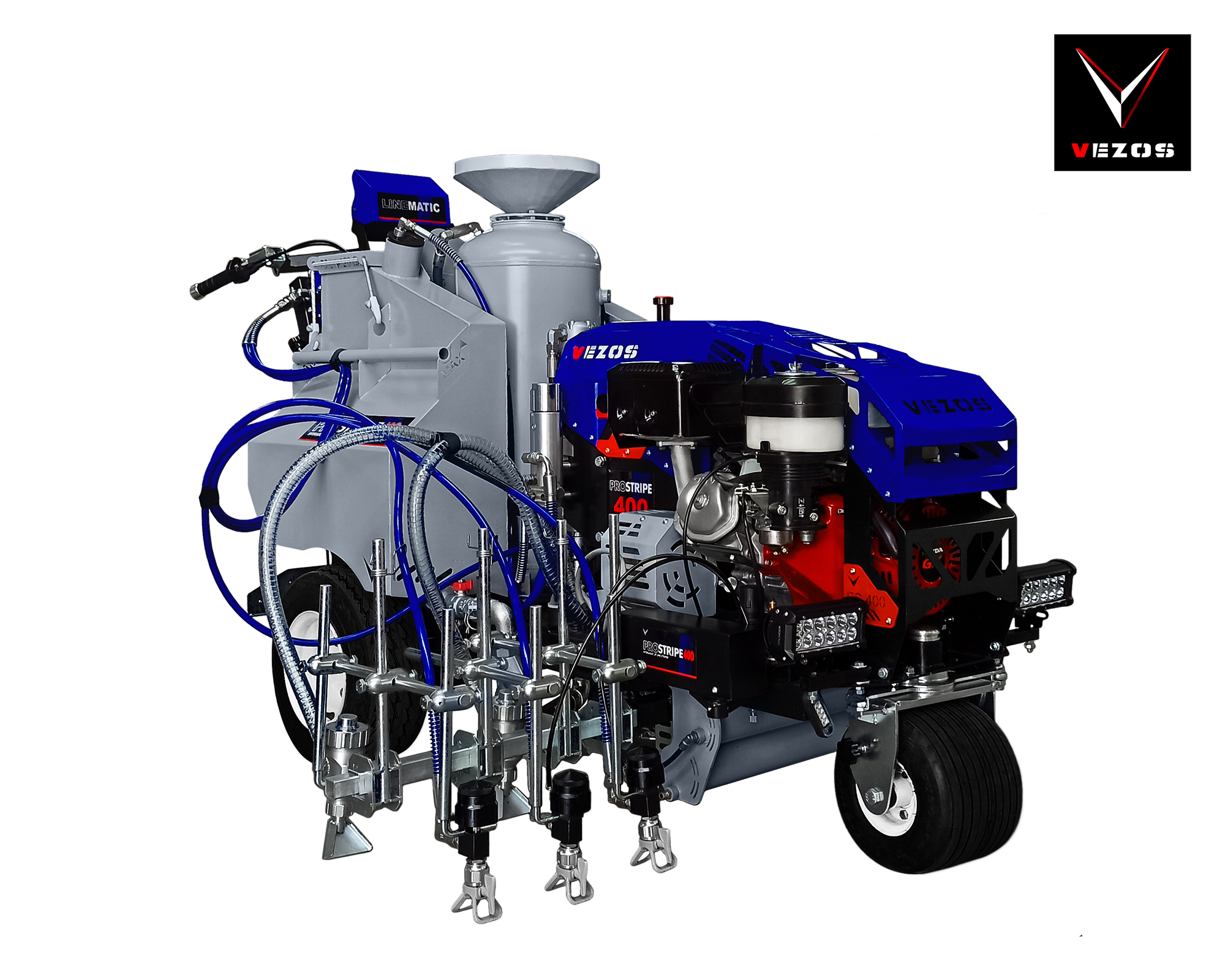

√ Front and rear gun placement
√ On board stencil kit with manual airless spray gun & hose
√ Two piston high volume air compressor to support multiple bead guns with 3.6 lit air accumulator
LINEMATIC CONSOLE PS 400
√ Turning radius indicator with lock-in system
√ Skip line controller for multiple gun operation
√ Gallon totalizers & counters
√ Kill switch | Engine throttle
√ Engine & system ON/OFF
√ Gun actuator (trigger)
√ Pressure gauge
√ Hand brake
√ Cup holder
FLIPDRIVE LINE STRIPE SEAT
√ Double ascent ride | sit – stand ride along

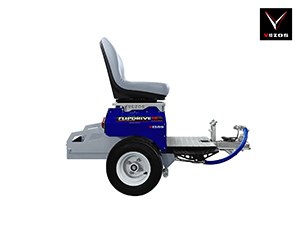

√ Tow behind attachment
√ Rear extra space for cones or gas tank
√ Hidden tool compartment with anti-slip surface
EXTRA FEATURES
√ Anti-vibration control
√ T.C.S cooling technology
√ Full flow hydraulic cooler
√ Sensor box with solenoid electro-pneumatic valve
√ Hydraulic oil reservoir 2.5 gal & oil level indicator
√ Storage compartment (1.4 gal capacity, easy reach)
√ Enhanced electrical system (automotive type alternator)
√ Fully adjustable steering bar (height, width, grip inclination)
OPTIONAL ADD-ONS
√ Re-striping pointer
√ Light kit bracket (led, strobe, halogen etc.)
VEZOS Enhanced Electrical System allows you to add multiple lights or laser kits to your line striper, all powered by the unit's own output!
No more external batteries and extra components, as our HD automotive type generator and
battery can support up to 180 watt loads. With VEZOS, you'll have everything you need right at your fingertips!
Designed to provide reliable and consistent power, even in the toughest conditions.
Whether you're working with a laser in bright sunlight or with a light kit in complete darkness,
our system will deliver the performance you need.
MODEL | PROSTRIPE 400 | PROSTRIPE 400 | PROSTRIPE 400 |
LINEMATIC | LINEMATIC | LINEMATIC + TB RIDER | |
Material delivery (max) gpm | 2.5 | 2.5 | 2.5 |
Material delivery (max) lpm | 9.5 | 9.5 | 9.5 |
Working pressure (max) psi | 3350 | 3350 | 3350 |
Working pressure (max) bar | 230 | 230 | 230 |
Type | self-propelled | self-propelled | self-propelled |
Engine | HONDA GX390 (13.0 HP) | HONDA GX390 (13.0 HP) | HONDA GX390 (13.0 HP) |
Pump | HYDREX 70 (x2) | HYDREX 70 (x2) | HYDREX 70 (x2) |
Color - Pump | 2 color - DC | 2 color - DC | 2 color - DC |
Gun setup | 2 | 2 | 2 |
Glass bead gun | - | 2 | 2 |
Jumbo Track wheel kit | included | included | included |
System - Operation | Automatic | Automatic | Automatic |
Dimensions (striper) in | 75.5x33.5x42(h) | 75.5x33.5x42(h) | 75.5x33.5x42(h) |
Dimensions (striper) cm | 192x85x106.5(h) | 192x85x106.5(h) | 192x85x106.5(h) |
Includes: | |||
Paint gun | 2 | 2 | 2 |
Guard | 2 | 2 | 2 |
Tip | 2 | 2 | 2 |

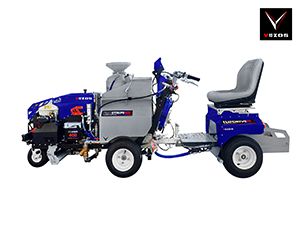

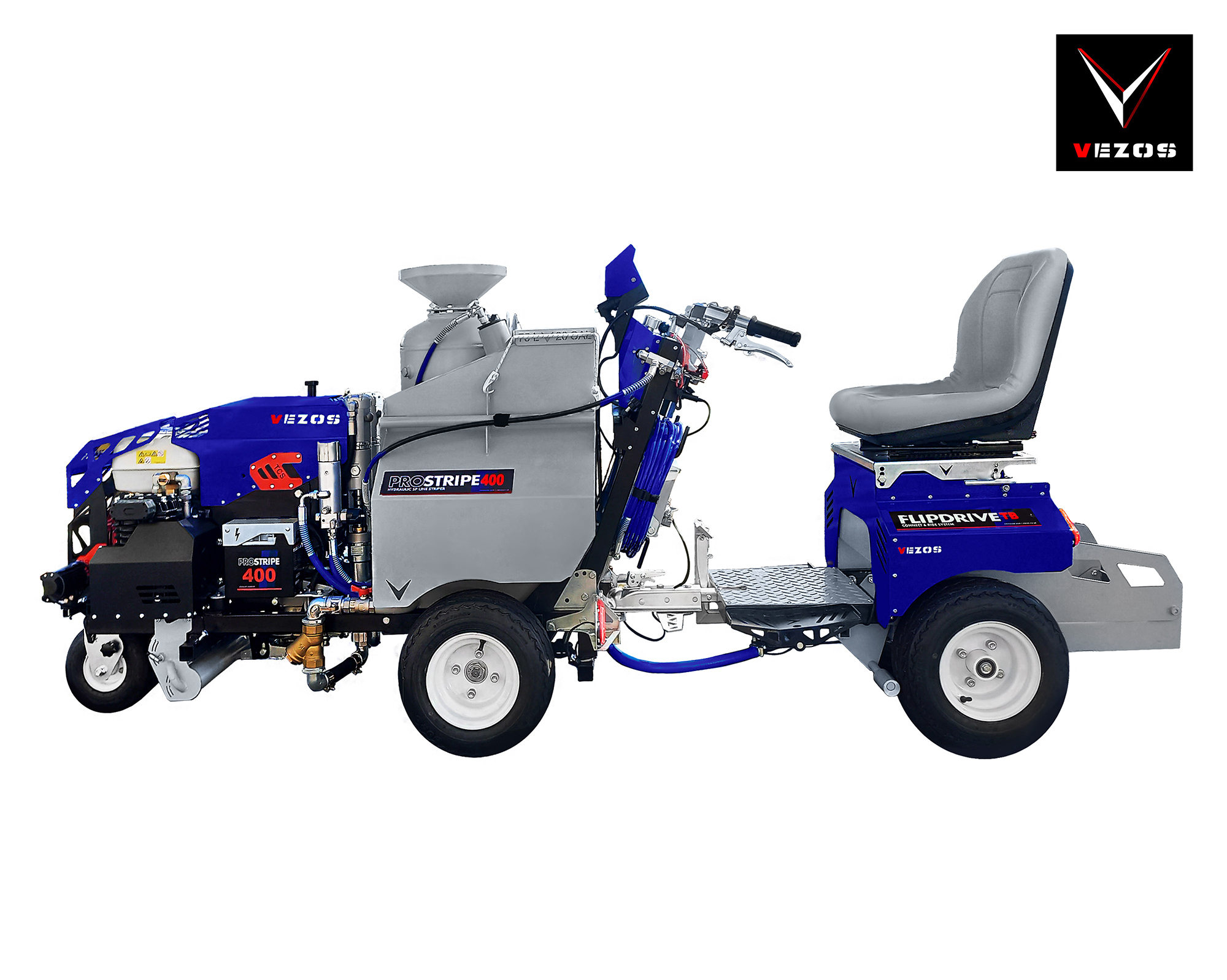

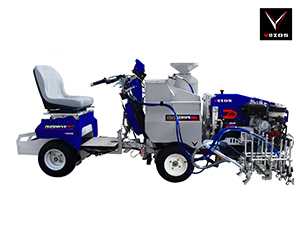

Rider tow-behind | - | - | included |
Controller | included | included | included |
Paint hopper 40 gal DC | included | included | included |
Glass bead system pressurized 165 lbs | - | included | included |
Part Number | 23.9941003 | 23.9941006 | 23.9941213 |
Optional Add-ons: | |||
Pointer | 23.7002204 | 23.7002204 | 23.7002204 |
Rider tow-behind | 23.9115501 | 23.9115501 | - |
Paint hopper 40 gal 3 color | 23.9951001 | 23.9951001 | 23.9951001 |
Flex wheel kit | 23.9107178 | 23.9107178 | 23.9107178 |
