Line Striper PROSTRIPE 400 SP LINEMATIC (Airport / Open Road Wheel Setup) 2-4 Gun

SKU: 23.9941006  /  Product Availability: Yes  /   Manufacturer: VEZOS

VEZOS Airport/Open Road Wheel Setup is designed to tackle any terrain with ease, making it perfect for use at airports and on open road line marking applications. The Setup features oversized turf wheels that provide exceptional stability and traction, even on uneven surfaces. These wheels ensure maximum durability, while the "Jumbo Track" front tire provides excellent stability and reduce ground pressure, making it ideal for use on soft surfaces like grass and dirt. The unique design of these wheels also allows for a wider ground contact area, which reduces the risk of tipping and improves stability during operation. This is especially important when striping on steep inclines or declines, where stability is critical for safe and accurate line marking. Ideal for roundabouts, local city marking jobs, airports, DOTs and intersections.

*Photos may contain features that are not included on the standard edition of the product.*

Back to: Self Propelled Line Stripers

Get Price Online Catalog Video

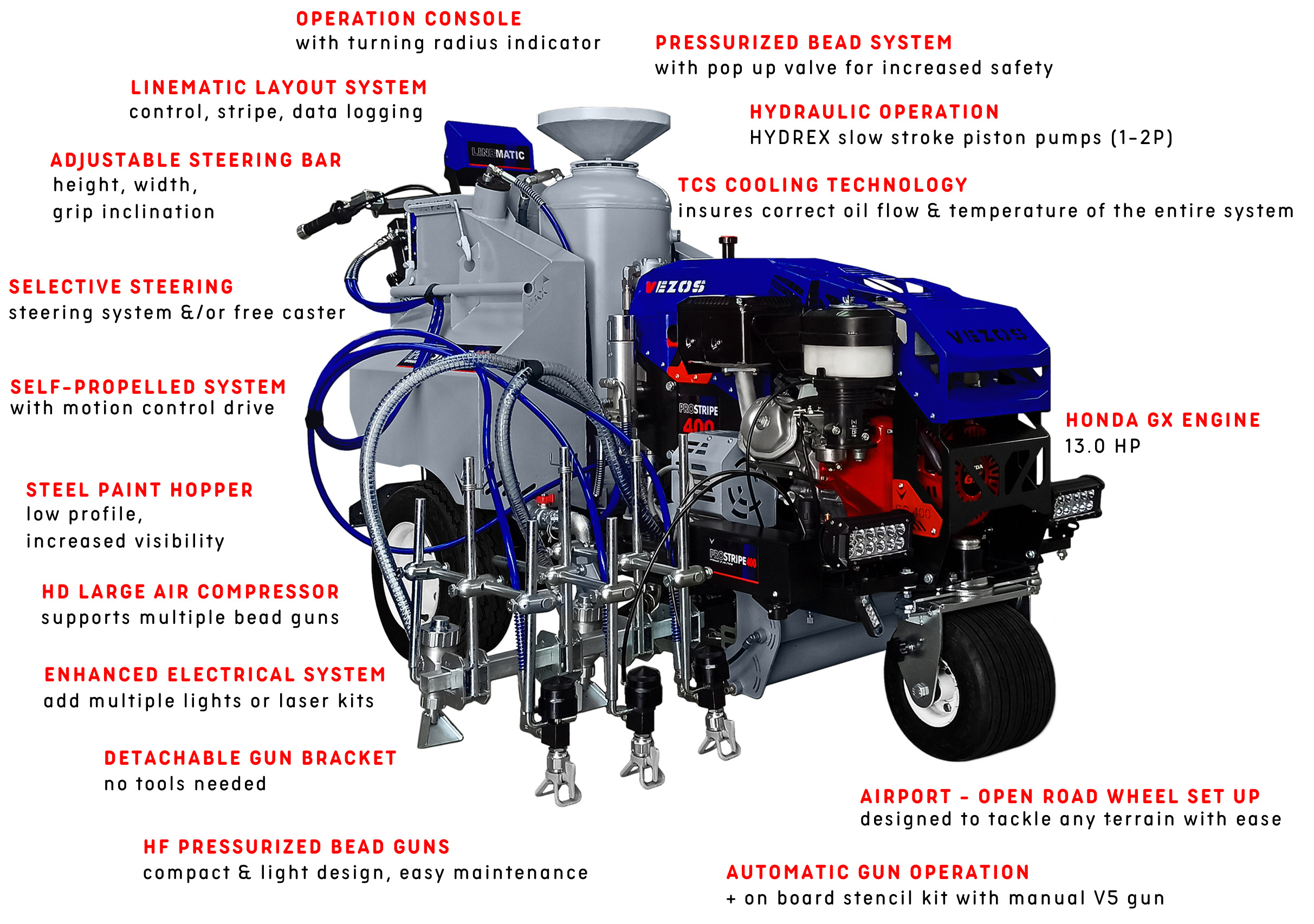

SELF-PROPELLED LINE STRIPER
SP system located directly on the striper
3-way drive / ride system
Motorcycle type motion control drive
Operation speed 16 km/h - 10 mphline striper 400 sp airport open road wheel setup

SELECTIVE FRONT WHEEL STEERING (SWS)
4-ply durable tire
Center lock-in front wheel in both positions
Position A: Precise steering from handle bar with automotive type steel bar
Position B: Free front caster wheel for increased maneuverability

HYDREX PISTON PUMP
Hydraulic pion pump HYDREX 70
1 & 2 color set up
Slow stroke 9.5 lit/m - 2.5 gal/min delivery
Built in filter

PAINT HOPPER 150 lit | 40 gal
Low profile paint tank for increased visibility
Inclined slope bottom
Single or double color with separate pump inlets
2 color 75 lit x 2 division | 20 gal x 2 division
Lift brackets & security hitches
Clean-out trap (connected directly to the pump suction)

GLASS BEAD TANK 75 kg | 165 lbs
Pressurized bead system
Steel tank with pop up safety valve
Removable loading funnel (no tools required)

AUTOMATIC GUN OPERATION
Electro-pneumatic paint gun actuator
2-4 automatic paint & glass gun set-up
Adjustable gun height
Front and rear gun placement
On board stencil kit with manual airless spray gun & hose
Two piston high volume air compressor to support multiple bead guns with 3.6 lit air accumulator


vezos enhanced electrical system



VEZOS Enhanced Electrical System allows you to add multiple lights or laser kits to your line striper, all powered by the unit's own output!

No more external batteries and extra components, as our HD automotive type generator and
battery can support up to 180 watt loads. With VEZOS, you'll have everything you need right at your fingertips!

Designed to provide reliable and consistent power, even in the toughest conditions.
Whether you're working with a laser in bright sunlight or with a light kit in complete darkness,
our system will deliver the performance you need.

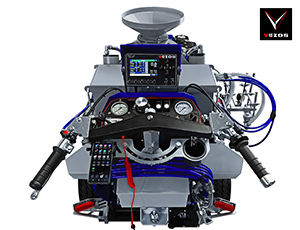

Automatic Line Striper PROSTRIPE 400 Airport-Open Road Wheel SetupLINEMATIC CONSOLE PS 400
Turning radius indicator with lock-in system
Skip line controller for multiple gun operation
Gallon totalizers & counters
Kill switch | Engine throttle
Engine & system ON/OFF
Gun actuator (trigger)
Pressure gauge
Hand brake
Cup holder

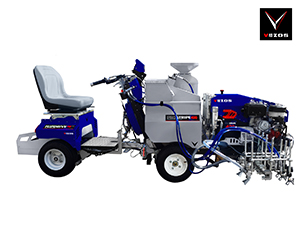

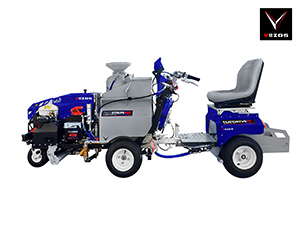

FLIPDRIVE LINE STRIPE RIDER
Double ascent ride | sit – stand ride along
Tow behind attachment
Rear extra space for cones or gas tank
Hidden tool compartment with anti-slip surface

EXTRA FEATURES
Anti-vibration control
T.C.S cooling technology
Full flow hydraulic cooler
Sensor box with solenoid electro-pneumatic valve
Hydraulic oil reservoir 2.5 gal & oil level indicator
Storage compartment (1.4 gal capacity, easy reach)
Enhanced electrical system (automotive type alternator)
Fully adjustable steering bar (height, width, grip inclination)

OPTIONAL ADD-ONS
Re-striping pointer
Light kit bracket (led, strobe, halogen etc.)




MODEL PROSTRIPE 400  PROSTRIPE 400  PROSTRIPE 400
LINEMATIC LINEMATIC LINEMATIC + TB RIDER
Material delivery (max) gpm 2.5 2.5 2.5
Material delivery (max) lpm 9.5 9.5 9.5
Working pressure (max) psi 3350 3350 3350
Working pressure (max) bar 230 230 230
Type  self-propelled self-propelled self-propelled
Engine 13.0 HP 13.0 HP 13.0 HP
Engine Type HONDA GX390 HONDA GX390 HONDA GX390
Pump  HYDREX 70 HYDREX 70 HYDREX 70
Color - Pump 1 color   1 color   1 color
Gun setup 2 2 2
Jumbo Track wheel kit included included included
System - Operation Automatic Automatic Automatic
Dimensions (striper) in 75.5x33.5x42 (h) 75.5x33.5x42 (h) 75.5x33.5x42 (h)
Dimensions (striper) cm 192x85x106.5(h) 192x85x106.5(h) 192x85x106.5(h)
Includes:
Paint gun  2 2 2
Guard  2 2 2
Tip  2 2 2
Glass bead gun   2 2
Rider tow-behind - - included
Controller included included included
Paint hopper 40 gal included included included
Glass bead system pressurized 165 lbs - included included
Part Number 23.9941002 23.9941005 23.9941210
Optional Add-ons:
Pointer  23.7002204 23.7002204 23.7002204
Rider tow-behind 23.9115501 23.9115501 -
Flex wheel kit 23.9107178 23.9107178 23.9107178
