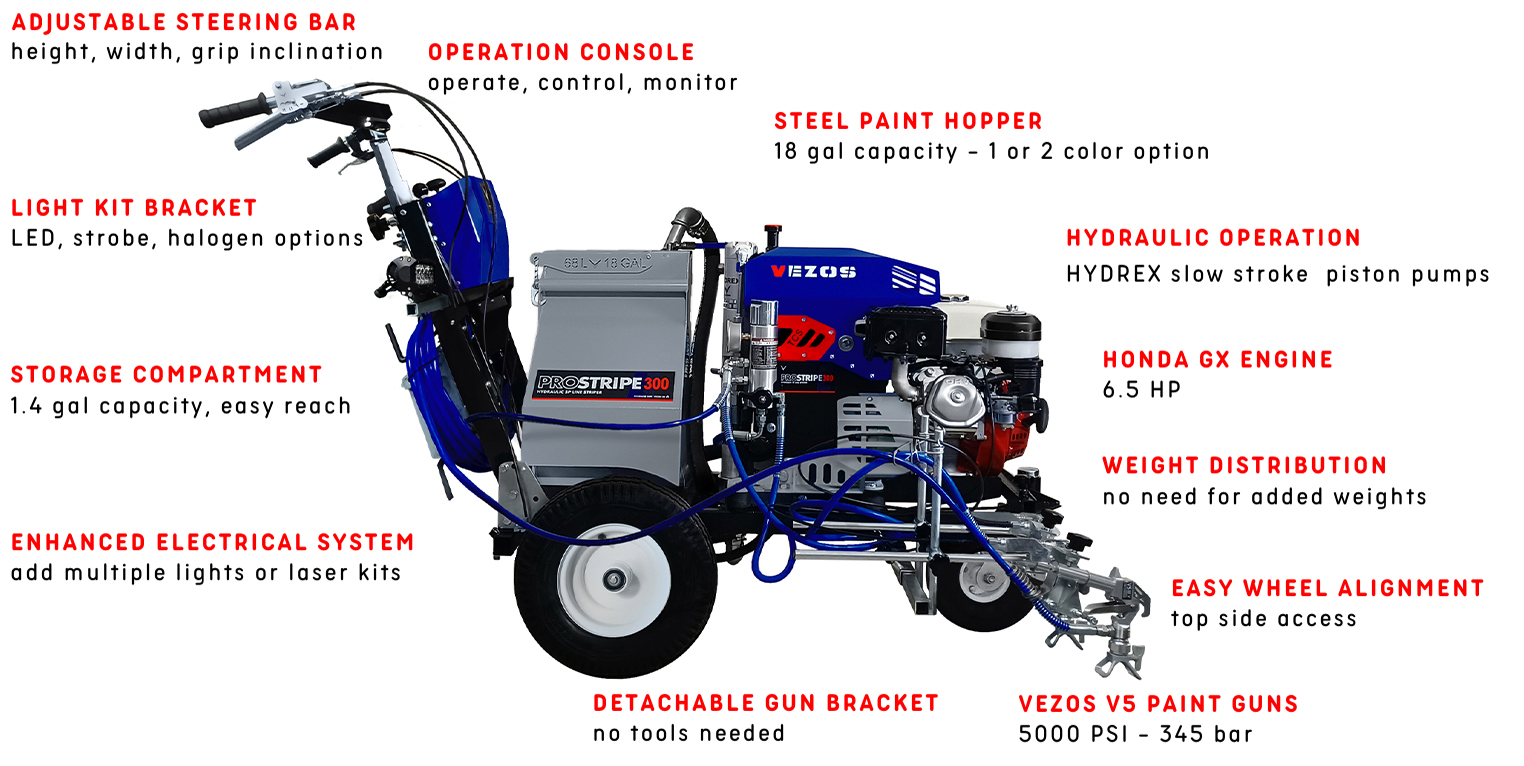

Walk Behind Line Striper PROSTRIPE 300 WB - 2 Paint Gun - Paint Hopper
SKU: 23.9255013 / Product Availability: Yes / Manufacturer: VEZOS
PROSTRIPE 300 Walk Behind Hydraulic Line Striper - the ultimate solution for professional pavement marking and line striping jobs. This advanced machine boasts a low-profile paint tank, designed for optimal visibility and easy maneuverability. The tank also features lifting brackets and secure hitches, ensuring smooth and stable operation. Catering to diverse striping requirements, the PROSTRIPE 300 line striper is available with both single and double color paint hopper editions. With its cutting-edge technology and user-friendly design, this striper guarantees unparalleled performance and precision, making it the go-to choice for professionals.
*Photos may contain features that are not included on the standard edition of the product.*
Back to: Walk Behind Line Stripers
Hydraulic Walk Behind Line Striper PROSTRIPE 300 - 18 Gallon Paint Hopper
The PROSTRIPE 300 walk-behind has an adjustable height handle, with no tools needed to make the adjustment. The double lock trigger placed on the steering bar make it easy to choose between a swivel front wheel or lock straight option while striping. Whether you're tackling small or large-scale projects, the PROSTRIPE 300 offers unparalleled flexibility with its 18-gallon paint hopper capacity. With its user-friendly design, you can count on unbeatable precision for crisp, sharp lines and precise paint application. The low-profile paint tank provides improved visibility and maneuverability, while its lifting brackets and secure hitches ensure stable operation.
VEZOS Enhanced Electrical System allows you to add multiple lights or laser kits to your line striper, all powered by the unit's own output!
No more external batteries and extra components, as our HD automotive type generator and
battery can support up to 180 watt loads. With VEZOS, you'll have everything you need right at your fingertips!
Designed to provide reliable and consistent power, even in the toughest conditions.
Whether you're working with a laser in bright sunlight or with a light kit in complete darkness,
our system will deliver the performance you need.
Includes:
- Gravity glass bead kit (2 gun)
- Paint hopper 68 lit - 18 gal
- Airless spray gun(s) x 2 qty
WIDE VIEW DESIGN
√ Low profile design for panoramic view of job site
√ Road view ahead even in sitting position
√ Extreme visibility even with glass bead tank in place
√ No head or body tilting to stripe | Safety first
HYDREX PISTON PUMP
√ Hydraulic piston pump HYDREX 70
√ 1 & 2 colour set up
√ Slow stroke 8.5 lit/m - 2.3 gal/min delivery
√ Built in filter
PAINT HOPPER 68 lit | 18 gal
√ Low profile paint tank for increased visibility
√ Single or double colour
√ Lift brackets & security hitches
GLASS BEAD HOPPER 32 kg | 70 lbs
√ Gravity tech bead system
√ Steel hopper with wide opening
√ Easy connection, no tools needed
MANUAL GUN OPERATION
√ Electric paint gun actuator
√ 1-2 manual paint gun set-up
√ Adjustable gun height
√ Front and rear gun placement
√ Removable gun for stenciling
OPERATION CONSOLE PS 300
√ Engine throttle
√ Engine & system ON/OFF
√ Pressure gauge
√ Hand brake
√ Cup holder
EXTRA FEATURES
√ Anti-vibration control
√ T.C.S cooling technology
√ Hydraulic oil reservoir 2.5 gal & oil level indicator
√ Storage compartment (1.4 gal capacity, easy reach)
√ Enhanced electrical system (automotive type alternator)
√ Fully adjustable steering bar (height, width, grip inclination)
OPTIONAL ADD-ONS
√ Re-striping pointer
√ LINEMATIC system (automatic operation)
√ Light kit bracket (led, strobe, halogen etc.)
√ Steel secure bucket lid (fits on all US-EU paint buckets)
MODEL | PROSTRIPE 300 | PROSTRIPE 300 | PROSTRIPE 300 |
MANUAL | MANUAL | MANUAL + PRODRIVE | |
Material delivery (max) gpm | 2.3 | 2.3 | 2.3 |
Material delivery (max) lpm | 8.5 | 8.5 | 8.5 |
Working pressure (max) psi | 3350 | 3350 | 3350 |
Working pressure (max) bar | 230 | 230 | 230 |
Type | walk-behind | walk-behind | walk-behind |
Engine | 6.5 HP | 6.5 HP | 6.5 HP |
Engine Type | HONDA GX200 | HONDA GX200 | HONDA GX200 |
Pump | HYDREX 70 | HYDREX 70 | HYDREX 70 |
Color - Pump | 1 color | 1 color | 1 color |
Gun setup | 1 | 2 | 2 |
System - Operation | Manual | Manual | Manual |
Dimensions (striper) in | 67x28x42 (h) | 67x28x42 (h) | 67x28x42 (h) |
Dimensions (striper) cm | 170x72x107(h) | 170x72x107(h) | 170x72x107(h) |
Includes: | |||
Paint gun | 1 | 2 | 2 |
Guard | 1 | 2 | 2 |
Tip | 1 | 2 | 2 |
Glass bead gun | - | - | - |
Driver SP | - | - | included |
Controller | - | - | - |
Paint hopper 18 gal | included | included | included |
Paint hopper 22 gal | - | - | - |
Glass bead system gravity 70 lbs | - | - | - |
Glass bead system pressurized 80 lbs | |||
Part Number | 23.9255012 | 23.9255013 | 23.9255013PD |
Optional Add-ons: | |||
Paint hopper 18 gal | - | - | - |
Glass bead system gravity 70 lbs | 23.9224322 | 23.9224300 | 23.9224300 |
Pointer | 23.7002204 | 23.7002204 | 23.7002204 |
