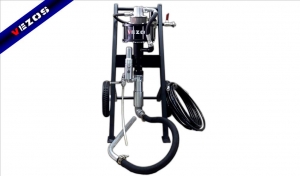

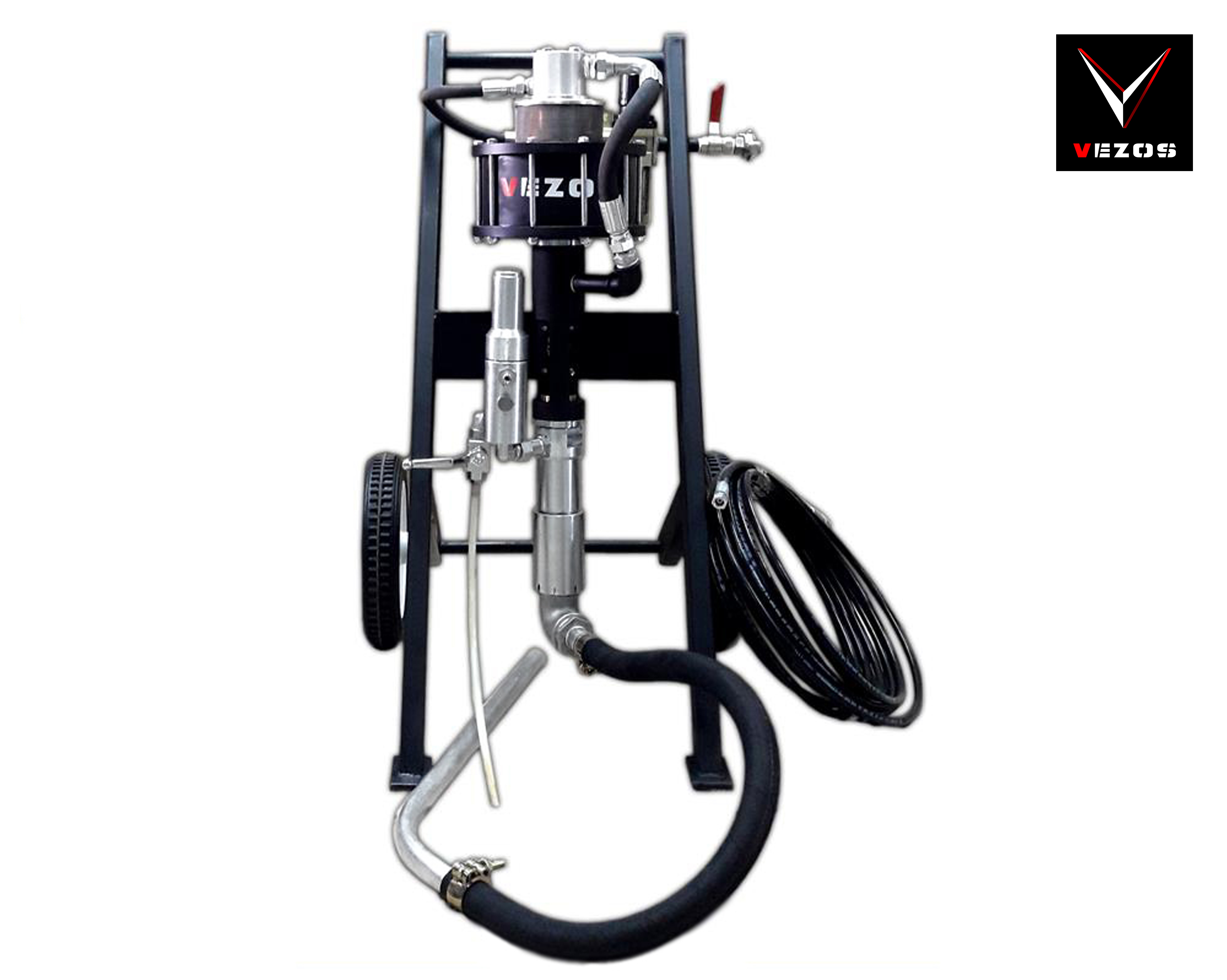

Pneumatic Pump Z-SPRAY 68:1

features

Pneumatic Pumps ZSPRAY

VEZOS Pneumatic pumps Z-Sprays are suitable for all protective coating jobs, designed for the toughest tasks, reducing downtime and repair cost due to an easy maintenance system.Z-Spray pumps are light weighted 65 kg, making them easy to transport and maneuver around the site / vessel.

Applications/Industries

 Marine/ship maintenance   Roof coatings    Railcars & transport vehicles     Bridge construction / maintenance

Materials

 Epoxy   Heavy VOC paints    Waterborne paint     Block fillers    Rubberized marking paint    Elastomeric coatings   Primers    Latex

Features

 Air operated pump

 Anti-ice design

 High working pressure 476 bar

 Hard chromed pump

 Portable heavy duty

SPECIFICATION

---

Part Number	23.1002837
Air Operated Pump	FX 68
Motor Size	2300
Fluid Pressure Ratio	68:1
Max Output Pressure	476 bar / 47.6 MPa
Max Air Input Pressure	7 bar / 0.7 MPa
Fluid Flow (@60cpm)	8 lit/min
Stroke Length	70 mm
Displacement Pump	67 cc
Pump Fluid Inlet	1 1/2" BSP
Pump Fluid Outlet	1/2 BSP
Dimensions	65x61x96cm
Weight	65 kg



SERIES COMPARISON

---

Part Number	23.1002801	23.1002835	23.1002837
Model	ZSPRAY 40:1	ZSPRAY 50:1	ZSPRAY 68:1
Motor Size	1400	1700	2300
Fluid Pressure Ratio	40:1	50:1	68:1
Output Pressure	280 bar	343 bar	476 bar
Input Presssure	7 bar	7 bar	7 bar
Fluid Flow(&60cpm)	8 lit/min	8 lit/min	8 lit/min
Stroke Length	70 mm	70 mm	70 mm
